802.1X

IEEE 802.1X (often just called 802.1X or dot1x) is an IEEE standard for port-based Network Access Control (PNAC). It provides a framework to authenticate and authorize devices (or users) before they can access a local area network (LAN) — whether wired (Ethernet) or wireless (Wi-Fi).

In simple terms:
It acts like a security guard at every network port (physical Ethernet switch port or wireless access point). A device can't send or receive normal traffic until it proves its identity. This prevents unauthorized devices (rogue laptops, hacked IoT gear, or someone plugging in a cable) from joining the network and potentially causing harm, stealing data, or disrupting operations.

Key Components (The Three Main Roles)
802.1X involves three parties working together:

Supplicant — The client device trying to connect (e.g., your laptop, phone, IP camera, or broadcast endpoint). It runs software (like wpa_supplicant on Linux or built-in supplicant in Windows/macOS) that provides credentials.

Authenticator — The network device controlling the port, typically an Ethernet switch or wireless access point. It acts as the middleman: it blocks traffic until authentication succeeds but allows limited "authentication traffic" through.

Authentication Server — Usually a RADIUS server (sometimes Diameter or others). This is the trusted backend that actually checks credentials against a database (Active Directory, LDAP, certificate store, etc.) and tells the authenticator whether to allow access.

How 802.1X Works (High-Level Flow)

A device (supplicant) connects to a switch port or associates with a Wi-Fi AP (authenticator).
The authenticator keeps the port in an unauthorized state:

Only EAPOL (EAP over LAN) frames are allowed — normal data/IP traffic is blocked.
This uses two logical "ports" on the authenticator:

Uncontrolled port — Always open for EAPOL authentication messages.
Controlled port — Blocked until authorization succeeds.

The supplicant and authenticator exchange authentication messages using Extensible Authentication Protocol (EAP) encapsulated in EAPOL.
The authenticator forwards the EAP messages (wrapped in RADIUS) to the authentication server.
The server validates credentials (e.g., username/password, digital certificate via EAP-TLS, or other methods like PEAP, TTLS).
If valid → Server sends "success" → Authenticator opens the controlled port → Full network access is granted (often with dynamic VLAN assignment, ACLs, or QoS based on policy).
If invalid → Access denied (port stays blocked or moves to a guest VLAN).

Common EAP Methods in 802.1X

EAP-TLS — Certificate-based (very secure, mutual authentication; gold standard for enterprises).
PEAP or EAP-TTLS — Username/password tunneled over TLS (common with AD credentials).
EAP-TTLS/PAP or others — Various legacy or specific setups.

Why It's Important

Prevents unauthorized access at the edge — far better than just MAC filtering or open ports.
Supports per-user/device policies — e.g., assign finance laptops to one VLAN, guest devices to another, or IoT to isolated segments.
Works for both wired and wireless — Foundation of WPA2/WPA3-Enterprise (not WPA-Personal's shared passphrase).
Scalable for enterprises — Integrates with central identity systems.

In broadcast and media facilities (e.g., SMPTE ST 2110 or NMOS environments), 802.1X is often used to secure IP-based infrastructure: ensuring only trusted cameras, playout servers, or control panels can join the media network, reducing risks in shared or remote production setups.

The current version is IEEE 802.1X-2020, which builds on earlier revisions with better support for MACsec encryption and modern authentication.

Access Control List

n networking and security contexts (especially relevant to the broadcast/media IP workflows we've been discussing), an ACL is a set of rules that controls which traffic is permitted or denied on a network device (e.g., router, switch, firewall).

Key Types of ACLs

Standard ACL

Filters based only on source IP address. Simple but limited (e.g., "allow traffic from 192.168.10.0/24").

Extended ACL

Source and destination IP
Protocol (TCP, UDP, ICMP, etc.)
Port numbers
Other flags (e.g., TCP SYN)

Example: "permit UDP from any to 239.0.0.0/8 eq 5004" (allow ST 2110 multicast RTP traffic).

MAC ACL / Port ACL

Operates at Layer 2: filters based on source/destination MAC addresses.
Useful on switches to restrict devices before they even get an IP.

VLAN ACL (VACL) / Port ACL (PACL)

Applied to VLANs or individual switch ports for finer L2/L3 control.

How ACLs Work (Typical Flow)

Rules are processed top-down (first match wins).
Each rule ends with an implicit deny any any (if no match → traffic is dropped).
Applied inbound or outbound on interfaces.
Common actions: permit (allow), deny (block), log (record matches).

Relevance in Media/Broadcast Networks

Protect multicast groups (e.g., allow only specific sources to send to 239.x.x.x addresses for ST 2110 essence streams).
Segment traffic (e.g., isolate NMOS control traffic from media essence).
Mitigate DoS/spoofing (block unauthorized sources, limit broadcast/multicast storms).
Enforce security zones (e.g., allow NMOS IS-04/05 traffic only from trusted controller subnets).
Often combined with 802.1X, MACsec, or RBAC for layered defense.

In Cisco/Juniper/Arista gear common in broadcast facilities, ACLs are a fundamental building block for secure IP infrastructure.

Ansible/NETCONF

Ansible is an open-source automation tool widely used for configuration management, application deployment, and network automation. It is agentless (no software needed on target devices), uses simple YAML playbooks, and connects via SSH (or other protocols) to push configurations idempotently (safe to run multiple times).

NETCONF (Network Configuration Protocol) is a standardized network management protocol defined by the IETF (RFC 6241). It runs over SSH (port 830 by default) and uses XML-encoded RPCs (Remote Procedure Calls) to interact with devices. Key features include:

Structured configuration/retrieval (get-config, edit-config, commit/rollback).

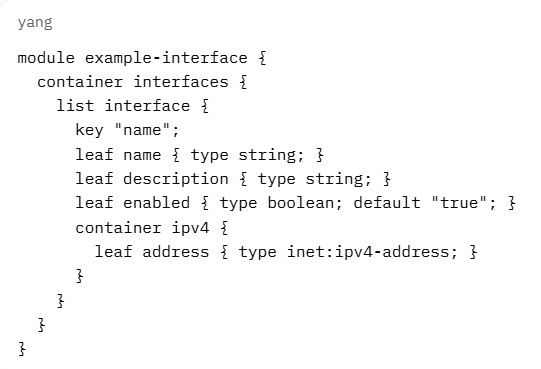

Support for YANG data models (defines device config/operational state in a machine-readable way).
Transactional operations (candidate config, confirmed commit, etc.).
Designed for programmatic, reliable network device management (replacing or supplementing CLI scripting).

How Ansible and NETCONF Work Together
Ansible integrates NETCONF as one of its connection methods and modules for modern network automation (especially on devices like Cisco IOS-XE/IOS-XR, Juniper Junos, Nokia SR OS, Arista EOS, etc., that support NETCONF + YANG).

Connection plugin: ansible.netcommon.netconf — Establishes a persistent NETCONF session over SSH instead of traditional CLI
Main modules:
- netconf_get: Retrieve running/candidate config or operational data (as XML).
- netconf_config: Push XML configuration snippets (often generated via Jinja2 templates from YAML vars).
- netconf_rpc: Send custom RPCs.
Benefits over CLI (network_cli connection):

More structured/reliable (no parsing messy CLI output).
Better for complex, model-driven configs.
Transactional safety (edit candidate, validate, commit).
Vendor-agnostic when using standard YANG models.

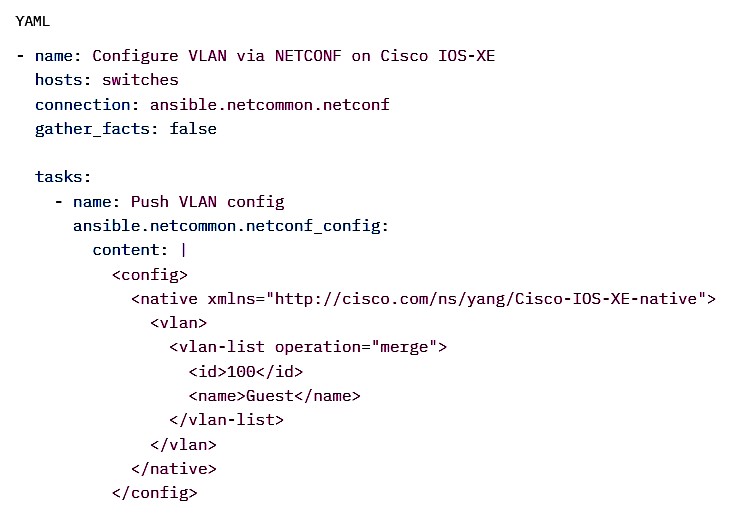

Quick Example Workflow (Ansible + NETCONF)

In short: Ansible = the automation orchestrator/tool. NETCONF = the modern, structured protocol it uses to talk to capable network devices (instead of just SSH + CLI commands). Together they enable powerful, model-driven network automation.

BMCA spoofing

BMCA spoofing (or Best Master Clock Algorithm spoofing) is a type of attack targeting IEEE 1588 Precision Time Protocol (PTP) networks, including those used in broadcast/media facilities (e.g., SMPTE ST 2110 for IP-based video/audio sync via PTP).

In PTP, the BMCA is the distributed algorithm that all clocks run to elect the best clock (usually a Grandmaster) as the time reference. Each clock advertises its attributes via Announce messages — priority values (Priority1/Priority2), clockClass, clockAccuracy, variance, identity, etc. — and compares them to decide who should be master.

BMCA spoofing involves an attacker (rogue device or compromised node) sending forged or manipulated Announce messages with exaggerated "better" attributes (e.g., lowest possible Priority1 value, highest clockClass, fake high-accuracy claims) to trick legitimate clocks into electing the attacker (or a malicious clock) as the new Grandmaster.

Impact

Once elected, the rogue Grandmaster sends false synchronization messages (Sync, Follow_Up, etc.).
All downstream slaves synchronize to the attacker's bogus time → causing time offset, jitter, frame drops, or desynchronization across the network.
In media workflows: Could break lip-sync, disrupt ST 2110 essence streams, ruin multi-camera genlock, or crash time-sensitive NMOS/PTP-dependent control.

This is often called a "rogue master" or "grandmaster spoofing" attack via BMCA manipulation. It's an internal/advanced persistent threat (requires network access, e.g., via MitM, compromised endpoint, or L2 spoofing like ARP poisoning).

Basic Mitigations

Authentication — Use IEEE 1588-2019 Annex K (group/pre-shared keys, though limited adoption) or emerging extensions.
Encryption — MACsec on L2 links to prevent injection/spoofing of PTP frames.
Redundancy — Multiple Grandmasters + Global-BMCA (G-BMCA) (IEEE 1588-2019) with majority voting or cross-checks against alternate sources (GNSS, IRIG).
Monitoring — Detect anomalies in clock attributes, unexpected master changes, or time jumps vs. local/reference clocks.
Network controls — 802.1X, port security, segmentation to limit rogue device placement.

It's a serious threat in critical timing infrastructures (power grids, broadcast, finance), but layered defenses (like those in ST 2059/SMPTE docs) significantly reduce risk.

Secure CLI

Secure CLI refers to a command-line interface (CLI) that is protected against unauthorized access, eavesdropping, tampering, and common attacks, ensuring safe remote or local administration of systems (e.g., servers, switches, NMOS nodes, PTP grandmasters in broadcast environments).

Key Characteristics of a Secure CLI

Encrypted communication — All sessions are encrypted end-to-end (no plaintext passwords or commands sent over the wire).
Primary protocol: SSH (Secure Shell, version 2 only).
Strong authentication — Replaces weak password-only logins with:

Public-key authentication (recommended: Ed25519 or RSA 4096-bit keys).
Optional: Multi-factor authentication (MFA/2FA via hardware tokens, TOTP, or certificates).
Certificate-based auth (e.g., SSH certificates signed by a CA).

No legacy/insecure protocols — Avoids Telnet, rlogin, FTP, or unencrypted serial console access over networks.
Hardened configuration:

Disable root login (or password-based root).
Restrict allowed users/groups.
Use non-default port (e.g., 2222 instead of 22) if externally exposed.
Enforce strong ciphers, key exchange algorithms, and MACs (disable weak ones like MD5, 3DES).
Limit login attempts (e.g., via fail2ban, denyhosts, or sshd_config MaxAuthTries).

Session protections:
- Idle timeout (ClientAliveInterval / ClientAliveCountMax).
- No command history leakage.
- Logging of all commands (audit trail) via syslog or tools like snoopy/auditd.
Privilege management:
- Use sudo with fine-grained rules (visudo) instead of direct root access.
- Role-based restrictions (e.g., allow only specific commands via restricted shells or sudoers).

In Broadcast/Media IP Contexts (ST 2110 / NMOS)
Secure CLI is critical for:

Managing Linux-based encoders, playout servers, or NMOS registries.
Configuring switches/routers for multicast, QoS, PTP.
Troubleshooting PTP grandmasters or NMOS nodes remotely without exposing credentials.
Complying with facility security policies (e.g., EBU recommendations).

Quick Best Practices Summary

Use SSH key-based auth only (disable password auth in sshd_config).
Keep OpenSSH updated.
Use tools like ansible or ansible-pull for automated,
Monitor SSH logs for anomalies.

In short: A secure CLI = SSH with strong keys, hardened config, and no weak legacy access — the standard way to safely administer networked devices today.

DHCP

DHCP (Dynamic Host Configuration Protocol) is a network management protocol used to automatically assign IP addresses and other network configuration parameters to devices (clients) on a network, so they can communicate without manual setup.

It eliminates the need for admins to statically configure every device (laptop, phone, camera, server, etc.) with an IP address, subnet mask, default gateway, DNS servers, etc.

How DHCP Works (Basic Flow)

DHCP Discover
Client broadcasts a DHCPDISCOVER message (UDP port 67/68) asking: "Any DHCP servers out there? I need an IP!"
DHCP Offer
One or more DHCP servers respond with a DHCPOFFER containing a proposed IP address, lease time, subnet mask, gateway, DNS, etc.
DHCP Request
Client broadcasts a DHCPREQUEST saying: "I'll take the offer from server X" (to let other servers know to release their offers).
DHCP Acknowledge (DHCPACK)
Server sends DHCPACK confirming the lease: "You're good to go with this IP for X hours/days."
(If declined or issues, server might send DHCPNAK.)

This is the classic DORA process: Discover → Offer → Request → Acknowledge.

Key Elements DHCP Provides

IP address (from a pool, e.g., 192.168.1.100–192.168.1.200)
Subnet mask
Default gateway (router IP)
DNS server(s)
Lease time (how long the IP is reserved; client must renew before expiry)
Optional extras: NTP servers, TFTP server (for PXE boot), domain name, etc.

Common DHCP Modes/Scenarios

Dynamic allocation — Most common; IPs leased temporarily.
Automatic allocation — Server assigns permanent IP (like static but auto-managed).
Manual/reserved allocation — Admin reserves specific IP for a MAC address (MAC reservation).
Relay agents — In large networks, DHCP relay (IP helper) forwards broadcasts to a central DHCP server across subnets.

Relevance in Broadcast/Media IP Networks (e.g., ST 2110/NMOS)

Devices like cameras, encoders, playout servers, NMOS nodes need quick, reliable IP assignment.
DHCP ensures endpoints get IPs fast during setup or power-up.
In production environments, use DHCP reservations (by MAC) for critical devices to get predictable IPs.
Combine with 802.1X for secure authentication before getting an IP.
Watch for rogue DHCP servers (MitM risk) — attackers can hand out bad gateways or DNS to redirect traffic.

Security Considerations

Rogue DHCP servers → MitM or DoS.
DHCP starvation attacks (exhaust IP pool with fake MACs).
Mitigations: DHCP snooping on switches, trusted server ports, rate limiting, IP source guard.

In short: DHCP is the "plug-and-play" for IP networking — devices join the network, get configured automatically, and start communicating. Without it, every device would need manual IP setup, which is impractical in modern (especially large media) facilities.

DHCP options for PTP domain

DHCP options for PTP domain refer to DHCP configuration parameters that can automatically provide PTP (Precision Time Protocol, IEEE 1588)-related settings to clients (e.g., endpoints, cameras, or nodes in SMPTE ST 2110 media networks) during IP assignment.

There is no standard, IANA-registered DHCP option specifically for the PTP domain number (a value from 0–255 that groups PTP clocks into independent timing domains).

Common Practices in Broadcast/Media (ST 2110 / AES67)

PTP domain number is typically statically configured on devices (e.g., domain 0 for AES67 default profile, domain 127 for SMPTE ST 2059-2 profile in ST 2110 setups).
Many vendors and facilities avoid relying on DHCP for this because:

All devices in a timing domain must match the domain number for synchronization to work.
Mismatches cause slaves to ignore grandmasters or fail sync.
Manual/static config or device profiles ensure consistency.

Related DHCP Options for Time Sync
While not domain-specific, DHCP can provide time-related servers useful for PTP-aware clients or hybrid setups:

Option 42 — NTP servers (list of IP addresses for Network Time Protocol fallback or non-PTP devices).
Option 4 — Time Protocol servers (RFC 868, legacy, rarely used today).
Some proprietary or vendor-specific implementations (e.g., in Domain Time II software) use custom DHCP options or vendor extensions to push PTP grandmaster IPs or profiles, but these are not standardized and not interoperable across vendors.

Recommendations for ST 2110 / NMOS Environments

Use DHCP reservations (MAC-based fixed IPs) for predictable addressing of PTP slaves/grandmasters.
Statically configure PTP domain, profile (AES67 vs. SMPTE ST 2059-2), announce intervals, etc., via device UI, config files, or NMOS IS-09 system parameters where supported.
For discovery of grandmasters: Rely on PTP Announce messages (multicast) rather than DHCP.
In secure setups: Combine with 802.1X (for authenticated IP assignment) and MACsec on L2 links.

In short: There are no official DHCP options for PTP domain number — it's usually handled statically or via profiles to guarantee reliable timing across the facility. If your setup uses a specific vendor (e.g., Tektronix, Clear-Com, or Cisco), they might have proprietary ways; let me know for more details!

Docker container

A Docker container is a lightweight, standalone, executable package that includes everything needed to run an application reliably: the code, runtime, libraries, system tools, and dependencies.

Key points:

It's created from a Docker image (a read-only template/blueprint).
When you run the image (e.g., via docker run), it becomes a live container — an isolated running process.
Containers share the host operating system's kernel (no full guest OS like a virtual machine), making them fast, efficient, and low-overhead.
They provide strong isolation: each container runs in its own user space with its own filesystem, processes, network, etc., so apps don't interfere with each other or the host.
Benefit: "It works on my machine" → consistent behavior across dev, test, production, cloud, laptops, servers, etc.

Analogy
Think of a shipping container: standardized, portable, self-contained (has what the cargo needs), runs the same anywhere (ship, truck, train), isolated from other cargo.

Quick comparison to VMs

VM: Heavy (full OS + hypervisor), emulates hardware → slow startup, high resource use.
Docker container: Lightweight (only app + deps), shares host kernel → starts in seconds, uses far less RAM/CPU.

Docker popularized containers (via Docker Engine), but the concept is now standardized (e.g., OCI runtime spec), so tools like Podman, containerd, etc., also run similar containers.

In short: Docker containers let you package apps "once, run anywhere" with isolation, portability, and efficiency.

DoS attacks

DoS (Denial of Service) attacks are malicious attempts to make a network service, server, website, API, or device unavailable to its legitimate users by overwhelming it with traffic or exploiting vulnerabilities to crash it.

The core goal is disruption, not data theft — attackers flood or break the target so normal users can't access it (e.g., a broadcast playout server stops responding, a streaming endpoint drops frames, or an NMOS registry becomes unreachable).

Main Types of DoS Attacks

Volumetric DoS

Floods the target with massive amounts of traffic to saturate bandwidth or resources.
Examples: UDP floods, ICMP floods (ping floods), DNS amplification.
Common scale today: tens to hundreds of Gbps (or even Tbps in large attacks).
Mitigation: traffic scrubbing, rate limiting, cloud DDoS protection (Cloudflare, Akamai, AWS Shield).

Protocol DoS

Exploits weaknesses in network protocols to tie up resources without needing huge volume.

SYN flood (half-open TCP connections exhaust server backlog).
Slowloris (slow HTTP requests keep connections open).
NTP/SSDP/DNS amplification (spoofed requests make third-party servers flood victim).

Mitigation: SYN cookies, connection timeouts, protocol hardening.

Application-Layer DoS (Layer 7)

Targets the application itself (e.g., HTTP, SIP, NMOS APIs) with seemingly legitimate requests.
Examples:

HTTP floods (GET/POST spam).
XML/JSON bomb payloads that consume CPU/memory parsing.
Login brute-force or credential stuffing that overwhelms auth systems.

Mitigation: WAFs (Web Application Firewalls), rate limiting per IP/user, behavioral analysis, CAPTCHA.

Distributed DoS (DDoS)

Most real-world DoS attacks today are DDoS — coordinated from thousands to millions of compromised devices (botnets: Mirai, Moobot, etc.).
Makes mitigation harder because traffic comes from many legitimate-looking sources.

Quick Real-World Impact Examples (Media/Broadcast Context)

A volumetric DDoS on a contribution feed encoder could drop live video streams.
An application-layer attack on an NMOS IS-04 registry could prevent devices from discovering/ registering sources, breaking routing in an ST 2110 facility.
Slow DoS on a control system UI could lock out operators during a live event.

Basic Defenses

On-premises: Firewalls with rate limiting, IPS/IDS, redundant links.
Cloud/edge: DDoS scrubbing services, anycast routing, geo-blocking suspicious regions.
Application: API rate limiting, authentication throttling, monitoring for abnormal patterns.
General: Keep firmware/OS patched, disable unused services, use 802.1X/MACsec/TLS to reduce attack surface.

DoS attacks remain one of the most common and persistent threats because they're relatively easy to launch (DDoS-for-hire services exist for as little as $10/hour) but can cause significant downtime and cost.

DSCP CS5/AF41 for media

CS5 and AF41 are common DSCP (Differentiated Services Code Point) values used in QoS (Quality of Service) to prioritize different types of media traffic over IP networks, especially VoIP, video conferencing, and real-time applications.

Quick Breakdown

DSCP values (0–63) mark IP packets so routers/switches can apply prioritized queuing, low latency, low jitter, and controlled drop behavior during congestion.
Both are in the high-priority range (Precedence 4–5 equivalent), but they serve different purposes.

CS5 (DSCP 40, binary 101000)

Class Selector 5 (CS5) — part of the Class Selector PHBs (RFC 2474), designed to be backward-compatible with old IP Precedence.
Commonly used for:

Broadcast video (e.g., IPTV, live streaming one-to-many).
Signaling/control traffic in some systems (e.g., Zoom, Cisco, or legacy VoIP signaling).
Occasionally video media in specific apps (e.g., Zoom screen sharing or video fallback).

Treatment: High priority but not as strict as EF; often gets CBWFQ (Class-Based Weighted Fair Queuing) with generous bandwidth and low drop probability.
Not ideal for ultra-low-latency interactive media.

AF41 (DSCP 34, binary 100010)

Assured Forwarding Class 4, Low Drop Probability (AF41) — from Assured Forwarding PHB group (RFC 2597).
AFxy format: x = class (higher = more important), y = drop precedence (1 = lowest drop prob, 3 = highest).
Standard/recommended for interactive video and multimedia conferencing (e.g., video calls in Teams, Webex, Zoom video, Cisco Unified CM video telephony).
Treatment:

Placed in a CBWFQ queue (not strict priority like voice).
Assured bandwidth with WRED (Weighted Random Early Detection) — AF41 drops last in its class during congestion.
Allows rate adaptation (video codecs can reduce bitrate if loss occurs) while keeping good quality.

Why AF41 for video? Video is bursty and higher bandwidth than voice but still needs low loss/jitter; strict priority (like EF) could starve other traffic if overused.

Standard Recommendations (e.g., Cisco, Microsoft Teams, Zoom, RFC 4594)

Voice / Telephony (VoIP audio) → EF (46) — strict priority queue (LLQ/PQ), ultra-low latency/jitter.
Interactive Video / Multimedia Conferencing → AF41 (34) — CBWFQ with assured forwarding.
Broadcast Video → CS5 (40) or sometimes CS4 (32).
Signaling → Often CS3 (24) or CS5 (40), depending on vendor.

In practice:

Use EF for audio-only real-time media.
Use AF41 for video media in calls/conferences (most common for "media" beyond pure voice).
Some apps (e.g., Zoom) may mark video/screen sharing as CS5 or AF41 depending on type.
Always trust endpoint markings where possible, or re-mark at network ingress.

This ensures voice stays crystal clear (EF priority) while video gets reliable bandwidth without monopolizing the link (AF41 assured class). Let me know if you want QoS config examples for Cisco/MikroTik!

DSCP CS6 for PTP

QoS (Quality of Service) is a set of techniques used in IP networks to prioritize certain types of traffic over others, ensuring low latency, minimal jitter, and reliable delivery for time-sensitive or critical packets — especially important in broadcast/media environments like SMPTE ST 2110, where PTP (IEEE 1588) provides sub-microsecond clock synchronization for video/audio streams.

DSCP and PTP

DSCP (Differentiated Services Code Point) is a 6-bit field in the IP header (values 0–63) that marks packets for QoS treatment.
Switches/routers use these markings to place packets into priority queues (e.g., high-priority queues get serviced first with strict priority or weighted scheduling).

For PTP traffic (Announce, Sync, Follow_Up, Delay_Req/Resp, etc. messages), the goal is to minimize delay variation and packet loss, as even small jitter can cause timing drift and desync in ST 2110 workflows.

DSCP CS6 for PTP

CS6 = DSCP value 48 (binary 110000, Class Selector 6, Internetwork Control PHB).
It provides high priority (often queue 1 or network-control level), above most user traffic but below the absolute highest (CS7=56 or EF=46 in some cases).
CS6 is commonly used for PTP in:

RAVENNA (one of the AoIP standards influencing AES67/ST 2110).
Some Dante implementations (especially older/legacy PTPv1 or specific configs, where PTP gets CS6/56 and audio gets EF/46).
Certain vendor defaults or profiles for network control traffic.

Common Recommendations in Modern ST 2110 / AES67

AES67 standard recommends DSCP EF (46) for PTP clock/event messages (Expedited Forwarding PHB — highest priority, low-latency queue) and AF41 (34) for RTP audio media.
Many SMPTE ST 2110 deployments follow AES67 markings: PTP → EF (46).
Cisco PTP configs often default to or recommend EF (46) for PTP event messages.
Linux ptp4l allows configurable DSCP: e.g., dscp_event=46 (EF) or 48 (CS6) for event messages.

In practice:

Use CS6 (48) if your facility/profile (e.g., RAVENNA-based or legacy Dante) marks PTP this way — ensure switches treat CS6 as high-priority.
Prefer EF (46) for new AES67/ST 2110 setups — it's the most common modern recommendation for PTP to guarantee minimal jitter (<1 µs typical target).

Always configure consistent DSCP on endpoints and network QoS policies (trust DSCP, map to priority queues) to avoid drops or reordering of PTP packets. Misaligned QoS is a frequent cause of PTP sync issues in media networks!

Dynamic IP

Dynamic IP vs Static IP Comparison

Feature	Dynamic IP	Static IP
Assignment	Automatic via DHCP	Manually configured
Changes Over Time?	Yes (often)	No (fixed)
Typical Use Cases	Home devices, laptops, phones, guest Wi-Fi, most consumer internet connections	Servers, printers, cameras, critical broadcast endpoints (e.g., ST 2110 senders / receivers)
Management Effort	Low (plug-and-play)	Higher (manual planning and tracking required)

Dynamic IPs are convenient for temporary or non-critical devices (laptops, monitoring tools, guest panels) because setup is fast.

Not recommended for production-critical endpoints (encoders, playout servers, NMOS nodes) because:

An IP change can break NMOS registrations, IS-05 connections, or multicast group memberships.
PTP timing slaves might lose sync if the address shifts unexpectedly.

EBU R 143

This is a cybersecurity recommendation developed by the European Broadcasting Union (EBU), aimed at providing guidance on security safeguards for media organizations and vendors when planning, designing, sourcing, or implementing systems, software, and services in the media industry. It focuses on addressing cyber threats like malware and ransomware, particularly as media workflows shift to IT-based technologies and connected devices. First published in 2016, it has been updated multiple times, with the latest version 3.0 released in March 2025, which refines priority levels, clarifies requirements, and includes provisions for Software as a Service (SaaS) introduced in version 2.4 from March 2024.

The recommendation is set up as a structured framework with key sections outlining requirements for vendors and products. These include:

Vendor Information Security Management System (IS): Covers aspects like cybersecurity policies, organizational structure, audit plans, security certifications (e.g., ISO 27001), and employee awareness training.
Operational Security (OS): Addresses technical security analysis, vulnerability management, product lifecycle handling, secure delivery of software/products, customer maintenance processes, and separation of production and non-production environments.
Secure Development (SD): Focuses on development lifecycles, training for developers, and source code management practices.
Incident Management (IM): Includes incident response procedures, designated contact points, and forensic readiness.
Physical Security (PS): Deals with physical access controls and environmental protections.

Additional annexes provide detailed guidance: Annex A for on-premises systems, Annex B for cloud-based services, and Annex C specifically for SaaS. The setup is complemented by an accompanying Excel spreadsheet called the "Security Controls Assertion," which lists all requirements in a checklist format. This spreadsheet allows vendors to declare compliance (e.g., by filling in columns for assertions and evidence) during tenders or procurement processes. Media companies can use it to indicate priorities, with suggested categorizations like P1 (must/must not implement for critical security), P2 (should/should not for important recommendations), and P3 (should for best practices).

In practice, the setup encourages media companies to require vendors to complete the spreadsheet as part of responses to requests for proposals, helping establish minimum acceptance levels while being aware of potential risks. It aligns with broader standards like NIST frameworks but is tailored to the media sector's unique needs.

IS (Interface Specifications) Standards

IS-04, IS-05, IS-08, IS-12 are part of the AMWA NMOS (Networked Media Open Specifications) suite—open, RESTful APIs that complement SMPTE ST 2110 for IP-based professional media (video/audio over IP) in broadcast/production.

Very brief explanations:

IS-04 — Discovery & Registration: Devices (Nodes) automatically register themselves and their capabilities (Senders/Receivers, Flows) on the network; controllers query to discover and find available media resources.
IS-05 — Device Connection Management: Configures connections between Senders (e.g., cameras) and Receivers (e.g., monitors); handles SDP transport files, activation (immediate or scheduled), and stream routing (unicast/multicast).
IS-08 — Audio Channel Mapping: Remaps/re-routes individual audio channels within Senders or Receivers (e.g., shuffle channels from incoming streams or reassign outputs); enables flexible audio shuffling independent of video.
IS-12 — Control Protocol: Provides a standardized, model-driven way to control and parameterize devices (e.g., PTZ cameras, mixers) using structured APIs (often with WebSockets); more advanced device parameter control beyond basic connections.

These enable plug-and-play interoperability in ST 2110 environments: IS-04 finds devices, IS-05 connects streams, IS-08 handles audio flexibility, and IS-12 adds deeper control. (IS-04/05/08 are stable and widely deployed; IS-12 is newer/more emerging.)

How JWTs Are Used in APIs

JWT (JSON Web Token) is an open standard (defined in RFC 7519) for securely transmitting information between parties — most commonly a client and a server — as a compact, self-contained JSON object. It is digitally signed to ensure the data hasn't been tampered with and can be trusted.

JWTs are extremely popular for API authentication and authorization, especially in RESTful APIs, microservices, single-page applications (SPAs), mobile apps, and stateless architectures. They are frequently used as access tokens in OAuth 2.0 / OpenID Connect flows.

Why Use JWTs for APIs?

Stateless: The server doesn't need to store session data (no database lookups per request).
Scalable: Perfect for distributed systems — any server can validate the token independently.
Self-contained: All necessary info (user ID, roles, expiration, etc.) is inside the token.
Compact & URL-safe: Easy to send in HTTP headers, query params, or even cookies.
Cross-domain friendly: Works well across origins without CORS issues for tokens.

Structure of a JWT
A JWT consists of three parts separated by dots (.): header.payload.signature
Each part is Base64Url-encoded (a variant of Base64 that's safe for URLs and headers).

1. Header
A JSON object describing the token itself. Typically contains:
- typ: "JWT" (token type)
- alg: The signing algorithm (e.g., "HS256" for HMAC-SHA256 with a shared secret, "RS256" for RSA with public/private keys, "ES256" for ECDSA, etc.)
Example (JSON, before encoding):
JSON
{
"alg": "HS256",
"typ": "JWT"
}
Base64Url-encoded: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9

2. Payload
The actual data (called claims). This is where you put information about the user or request.
Claims fall into three categories:
- Registered claims (standard ones, recommended):
- Public claims — Custom ones you define (avoid collisions by using namespaced URIs):
- Private claims — Arbitrary data (e.g., roles, permissions, email)
  Example payload (JSON):
  JSON
  {
  "sub": "user123",
  "name": "Jane Doe",
  "roles": ["editor", "viewer"],
  "iat": 1697239022,
  "exp": 1697242622
  }

  Base64Url-encoded:
  eyJzdWIiOiJ1c2VyMTIzIiwibmFtZSI6IkphbmUgRG9lIiwicm9sZXMiOlsiZWRpdG9yIiwidmlld2VyIl0sImlhdCI6MTY5NzIzOTAyMiwiZXhwIjoxNjk3MjQyNjIyfQ

  Important security note: Never put sensitive data (passwords, credit cards, etc.) in the payload — it's only Base64-encoded, not encrypted (unless using JWE — JSON Web Encryption).
3. Signature
Created by taking the encoded header + "." + encoded payload, then signing it with the secret key (or private key) using the algorithm from the header.
This ensures:
- The token wasn't altered
- It came from a trusted issuer
Example creation (pseudocode for HS256):
text HMACSHA256( base64UrlEncode(header) + "." + base64UrlEncode(payload), secret ) The result is also Base64Url-encoded and appended.
Full example JWT:
text
eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiJ1c2VyMTIzIiwibmFtZSI6IkphbmUgRG9lIiwicm9sZXMiOlsiZWRpdG9yIiwidmlld2VyIl0sImlhdCI6MTY5NzIzOTAyMiwiZXhwIjoxNjk3MjQyNjIyfQ.SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c

How JWTs Are Used in APIs (Typical Flow)

User logs in → server verifies credentials.
Server creates and signs a JWT → sends it back (often as an access token).
Client stores the JWT (e.g., in memory, localStorage, HttpOnly cookie).
For every protected API request, client sends the JWT in the Authorization header:
text
Authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...
API server:

Extracts the token
Verifies the signature (using secret or public key)
Checks claims (exp not passed, iss/aud correct, etc.)
If valid → grants access based on claims (e.g., roles)
If invalid/expired → returns 401 Unauthorized

Common Best Practices for APIs

Use short expiration times (e.g., 15–60 minutes) + refresh tokens for long sessions.
Validate all important claims (exp, nbf, iss, aud).
Prefer asymmetric signing (RS256/ECDSA) in distributed systems → public key can be shared.
Never trust the payload without verifying the signature.
Use HTTPS always (tokens can be sniffed otherwise).
Consider token revocation strategies (short expiry + jti + blocklist if needed).
For highly sensitive APIs, combine with other controls (e.g., rate limiting, IP allowlisting).

JWTs power much of modern API security (including in NMOS IS-10 authorization, as we discussed earlier). Tools like jwt.io let you decode, verify, and debug them easily.

LLDP (Link Layer Discovery Protocol)LLDP (Link Layer Discovery Protocol)

LLDP (Link Layer Discovery Protocol) is a vendor-neutral, Layer 2 (data link layer) neighbor discovery protocol defined in IEEE 802.1AB. It allows network devices (like switches, routers, access points) to advertise their identity, capabilities, and neighbors to directly connected devices on a local network (typically Ethernet).

Key Points

Purpose: Enables automatic discovery of connected devices, helping with network mapping, troubleshooting, inventory, and topology visualization.
What it advertises (via periodic multicast frames to MAC 01:80:c2:00:00:0e):

Chassis ID (e.g., MAC address or serial number) Port ID and description System name and description Capabilities (e.g., is this a switch, router, phone?) TTL (hold time) Optional TLVs (Type-Length-Value): VLAN info, PoE details, management IP, MTU, link aggregation, etc.

Vendor-neutral: Unlike Cisco's proprietary CDP (Cisco Discovery Protocol), LLDP works across mixed-vendor environments (Cisco, Juniper, Arista, Ubiquiti, HP/Aruba, MikroTik, etc.).
How it works:

Devices send LLDP packets every ~30 seconds (configurable). Neighbors store the info for a hold time (default 120 seconds). Data is stored in a local MIB and can be queried via SNMP or shown with commands like show lldp neighbors.

Common commands (examples):

Cisco: show lldp neighbors, lldp run (global), lldp transmit / lldp receive (per interface) MikroTik: /interface lldp print, /interface ethernet set [find] lldp-med-net-policy-vlan=... Juniper: show lldp neighbors

In mixed or modern networks, LLDP is the go-to for cross-vendor discovery (many devices support both CDP and LLDP, with CDP often disabled in favor of LLDP for interoperability). It's especially useful in enterprise, data center, or AV-over-IP setups (e.g., with NMOS/ST 2110 gear).

LTS firmware

LTS firmware (Long-Term Support firmware) on routers and switches refers to a specific release branch of the device's operating system or firmware that is designed for extended maintenance and stability, rather than receiving frequent new features.

In software development (including networking equipment), LTS releases follow this model:

They receive bug fixes, security patches, and critical updates for a much longer period (often several years).

Why LTS exists for routers/switches
Many networking environments (especially business, enterprise, or mission-critical home setups) prioritize reliability over cutting-edge features. Frequent major firmware changes can introduce regressions, compatibility issues, or downtime during upgrades. LTS branches let admins stay on a proven version longer while still getting protected against vulnerabilities.

Examples in networking gear

MikroTik RouterOS — One of the clearest examples. They offer:

"Long-term" (LTS) channel — Older, very stable versions with mostly bug/security fixes (e.g., v6.49.x long-term branch received updates for years).
"Stable" channel — Newer features and fixes, but potentially less polished.
Many users in production environments stick to LTS for predictability.

NVIDIA/Mellanox switches (e.g., Cumulus, ConnectX, Quantum series) — Explicitly publish LTS firmware releases maintained for up to 3 years with bug fixes and security patches.

Cisco IOS XE (used on many routers/switches) — Uses similar concepts with "Extended-Support" releases (48 months of maintenance) vs. shorter "Standard-Support" ones. Not always labeled "LTS," but the idea is the same.

Other vendors like VyOS (open-source router/firewall), Digi cellular routers, or even some third-party/custom firmwares (e.g., Asuswrt-Merlin discussions) offer or discuss LTS-style branches.

Not every vendor uses the exact term "LTS" (e.g., Ubiquiti UniFi tends to have a single stable track with less formal long-term branches, and pfSense has release-based support but not always branded LTS). In consumer routers (TP-Link, Netgear, etc.), you might see "stable" vs. "beta," but true LTS is more common in prosumer/enterprise gear like MikroTik or specialized switch firmware.

If you're choosing firmware for a specific router/switch model, check the manufacturer's download page or changelog—they often label branches as "LTS," "Long-term," "Extended Support," or similar. Sticking to LTS is usually recommended for stability in production use.

MACsec for L2 links

MACsec (Media Access Control Security), defined by IEEE 802.1AE (current version 802.1AE-2018, with updates like 802.1AEdk-2023 for privacy features), is a Layer 2 (data link layer) security protocol that provides point-to-point encryption, integrity protection, and origin authentication for Ethernet frames on L2 links.

It secures traffic directly at the Ethernet level — between two directly connected devices (e.g., switch-to-switch, switch-to-host, or router-to-router over Ethernet) — making it ideal for protecting LAN segments, data center interconnects, or high-speed links where you control both endpoints.

Key Security Services MACsec Provides

Confidentiality — Encrypts the payload (including EtherType, VLAN tags if configured, and all upper-layer data like IP packets, ARP, DHCP, LLDP, etc.).
Integrity — Ensures frames aren't tampered with (using authentication tags).
Data origin authenticity — Verifies the sender is legitimate (prevents spoofing or impersonation).
Replay protection — Uses packet numbering to detect and drop replayed frames.

Unlike higher-layer protocols:

It protects all Ethernet traffic, including control protocols (ARP, DHCP, STP, LLDP, LACP) that IPsec or TLS can't secure.
It operates hop-by-hop (per link), not end-to-end.

How MACsec Works on L2 Links
MACsec inserts a SecTAG (Security Tag) into the Ethernet frame and applies protection using the AES-GCM (Galois/Counter Mode) cipher suite — supporting both 128-bit and 256-bit keys.
Typical frame structure with MACsec:

Original: [Dst MAC | Src MAC | (VLAN) | EtherType | Payload | FCS] MACsec-protected: [Dst MAC | Src MAC | SecTAG | (Encrypted VLAN if in clear) | Encrypted (EtherType + Payload) | Integrity Check Value (ICV) | FCS] The SecTAG includes:

EtherType (0x88E5 for MACsec)
Association Number (AN) — identifies which Secure Association Key (SAK) to use
Packet Number (PN) — 32-bit or 64-bit (extended) for replay protection and IV

Encryption uses AES-GCM (authenticated encryption) — fast, hardware-accelerated in modern NICs/switches.
Only the source/destination MAC addresses (and sometimes VLAN if "VLAN-in-clear") remain in plaintext; everything else is encrypted.

MACsec entities:

SecY — The MACsec entity on a port (can support multiple secure channels).
Secure Channel (SC) — Unidirectional logical channel between peers.
Secure Association (SA) — Each SC has transmit/receive SAs, each with a unique SAK (Secure Association Key) for encryption/auth.
Keys are distributed via MKA (MACsec Key Agreement, part of 802.1X-REV), which uses 802.1X for mutual authentication and elects a Key Server to push fresh SAKs periodically.

Setup and Key Management

Enable MACsec on both ends of the link (requires hardware support — most modern enterprise/data-center switches, routers, and NICs from Cisco, Juniper, Arista, etc., support it).
Use 802.1X (with EAP-TLS certificates or pre-shared keys via CAK/CKN) for authentication.
MKA negotiates and distributes SAKs automatically.
Configure policies: confidentiality (encrypt), integrity only, or bypass for certain traffic.
Optional: Confidentiality Offset (CO) to leave VLAN tags in clear for switching.

MACsec vs. Other Protocols (Quick Comparison)

Feature	MACsec (L2)	IPsec (L3)	TLS / mTLS (L4+)
Layer	Data Link (Ethernet frames)	Network (IP packets)	Transport / Application
Scope	Hop-by-hop (per Ethernet link)	End-to-end or tunnel	End-to-end (application to application)
Protects L2 Protocols?	Yes (ARP, DHCP, LLDP, etc.)	No	No
Latency / Throughput	Very low (hardware acceleration)	Higher (often software-based)	Variable
Hardware Requirement	Yes (PHY/NIC/switch support required)	Often software / firmware	Usually software
Best For	LANs, data centers, PTP links	WAN VPNs, routed networks	API / web traffic

Relevance in Broadcast/Media (e.g., SMPTE ST 2110)
In IP-based media facilities using ST 2110 (uncompressed video/audio over IP), MACsec is valuable for securing high-bandwidth, low-latency L2 Ethernet links between switches, endpoints, or in data centers. It protects essence streams and control traffic (NMOS, PTP) without adding significant latency, complementing higher-layer security like mTLS for NMOS APIs.

MACsec is part of zero-trust designs — especially useful where physical access to cables/switches is a concern (e.g., shared facilities or remote production).

Man in the middle attacks

Man-in-the-Middle (MitM) attacks occur when an attacker secretly intercepts and possibly alters communication between two parties who believe they are directly communicating with each other.

The attacker positions themselves in the data path (literally or logically "in the middle") to eavesdrop, steal data, inject malicious content, or impersonate one or both parties.

Common Ways MitM Attacks Happen

ARP Spoofing / ARP Poisoning (LANs)
Attacker sends fake ARP replies on a local network, tricking devices into sending traffic to the attacker's MAC address instead of the real gateway or target.
DNS Spoofing / Cache Poisoning
Attacker redirects DNS queries to malicious servers, so users are sent to fake websites (e.g., fake bank login page).
Rogue Access Points / Evil Twin Wi-Fi
Attacker sets up a fake Wi-Fi hotspot with the same SSID as a legitimate one; users connect and all traffic routes through the attacker.
SSL/TLS Stripping or Downgrade Attacks
Attacker forces a connection from HTTPS to unencrypted HTTP or uses invalid/forged certificates to intercept encrypted traffic.
Certificate Authority Compromise or Fake Certificates
Rare, but if an attacker obtains or forges a trusted certificate (or tricks the victim into accepting one), they can perform full TLS interception.
Proxy / Transparent Proxy Insertion
In corporate or ISP environments, unauthorized proxies can be placed in the path.

What the Attacker Can Do

Read plaintext data (passwords, session cookies, messages).
Steal authentication tokens or session IDs.
Modify requests/responses (e.g., change bank transfer amount, inject malware).
Redirect to phishing sites.
Perform session hijacking.

Why It's Relevant in Modern Networks (e.g., Media/Broadcast)
In IP-based production environments (ST 2110, NMOS), MitM can:

Intercept PTP timing packets → cause sync issues or frame drops.
Alter NMOS API calls → reroute media streams or disrupt control.
Eavesdrop on unencrypted control traffic or essence streams.

Basic Defenses Against MitM

Always use TLS (HTTPS, mTLS) with proper certificate validation (no accepting self-signed certs blindly).
Enable HSTS (HTTP Strict Transport Security) to prevent downgrade attacks.
Use certificate pinning (HPKP deprecated, but use certificate transparency + app-level pinning).
802.1X + MACsec on L2 links to secure Ethernet frames end-to-end on trusted links.
Strong mutual authentication (mTLS, client certificates) for APIs and services.
VPNs or encrypted tunnels (IPsec) over untrusted networks.
DNSSEC to protect against DNS spoofing.
Network segmentation and monitoring for ARP/DNS anomalies.

MitM is one of the most dangerous attacks because it can silently compromise confidentiality and integrity without the victims noticing — which is why modern security heavily emphasizes encryption and endpoint authentication at every layer.

MQTT

MQTT (Message Queuing Telemetry Transport) is a lightweight, publish-subscribe messaging protocol designed for low-bandwidth, high-latency, or unreliable networks. It was originally developed in 1999 by IBM (for monitoring oil pipelines) and is now an OASIS standard (MQTT 5.0 is the current version, released 2019; MQTT 3.1.1 still widely used).

Core Concept: Publish-Subscribe (Pub/Sub)
MQTT uses a broker (central server) to route messages between publishers (devices/sensors that send data) and subscribers (applications or devices that receive data).

Publishers send messages to topics (string-based addresses, e.g., home/livingroom/temperature or facility/camera/1/status).
Subscribers register interest in one or more topics (using wildcards: + for single level, # for multi-level).
The broker handles delivery — publishers and subscribers never talk directly.

This decouples senders from receivers, making it scalable and flexible.

Key Features

Very lightweight — Small packet overhead (minimum 2-byte header), ideal for constrained devices (IoT sensors, embedded systems).
Quality of Service (QoS) levels:

QoS 0 — At most once (fire-and-forget, fastest, possible loss).
QoS 1 — At least once (acknowledged, possible duplicates).
QoS 2 — Exactly once (handshake ensures no loss or duplicates, slowest).

Last Will and Testament (LWT) — Device can publish a “last message” if it disconnects unexpectedly (e.g., “I’m offline”).
Retained messages — Broker can store the last message on a topic so new subscribers get it immediately.
Persistent sessions — Broker remembers subscriptions and undelivered QoS 1/2 messages across reconnects.
Security — Supports TLS/SSL encryption, username/password, client certificates, and (in MQTT 5.0) enhanced auth.

Typical Use Cases

IoT — Sensors (temperature, humidity, motion), smart home devices, industrial monitoring.
Telemetry — Remote monitoring of equipment, vehicles, or infrastructure.
Broadcast/Media — Lightweight control signaling, status updates from encoders/playout servers, or monitoring NMOS/ST 2110 endpoints (less common than HTTP/REST for NMOS control plane, but used in some edge or telemetry scenarios).
Messaging in constrained environments — Satellite links, cellular IoT, low-power wide-area networks (LPWAN).

MQTT vs HTTP/REST Comparison

Aspect	MQTT	HTTP / REST
Model	Publish / Subscribe (push-based)	Request / Response (pull-based)
Overhead	Very low	Higher (headers, handshakes)
Persistent Connection	Yes (long-lived TCP session)	Usually short-lived
Best For	Real-time, event-driven data	On-demand queries, CRUD operations
Typical Payload	Small JSON or binary messages	Larger JSON or XML payloads

Popular open-source brokers: Mosquitto, EMQX, HiveMQ, ** VerneMQ**.

In short: MQTT is the go-to protocol when you need efficient, reliable, low-power messaging in IoT or telemetry scenarios — think of it as a lightweight, topic-based message bus for devices that can’t afford heavy protocols like HTTP.

NMOS IS-09 (System Parameters for config)

NMOS IS-09 (System Parameters Specification, current version v1.0.0) is an AMWA NMOS standard that defines a simple System API for NMOS Nodes (also called Media Nodes, like ST 2110 senders/receivers) to obtain global configuration parameters that apply across the entire media facility or system.

Purpose

Ensures consistent startup and operation in a multi-vendor IP-based media environment (e.g., SMPTE ST 2110 workflows).
Provides "global" settings that aren't covered by standard protocols like DNS, DHCP, or PTP itself — helping nodes boot quickly and correctly without manual config.
Critical for parameters that must be identical facility-wide (e.g., PTP domain, timing profiles).

Key Features

Exposes a single, read-only global resource (JSON object) via a RESTful API.
Includes:

System ID — Unique identifier for the facility/system (constant over its lifetime).
Global configuration parameters — Most importantly, PTP-related settings (e.g., PTP domain number, profile like AES67 or SMPTE ST 2059-2, grandmaster priorities, or other timing configs).
Potential for future extensions (other system-wide values)

How It Works

Nodes discover the System API endpoint (often via DNS-SD or configuration).
They query the API (e.g., GET /x-nmos/system/v1.0/global) to fetch the JSON resource.
Use the parameters to configure themselves (e.g., set correct PTP domain for sync).

Why It Matters in Broadcast/Media

Enables plug-and-play behavior: A new camera, encoder, or playout server powers up, queries IS-09, gets the facility's PTP domain/timing info, registers via IS-04, and starts streaming without operator intervention.
Reduces misconfiguration risks (e.g., wrong PTP domain → no sync → frame drops or desync in live production).
Complements IS-04 (discovery/registration) and IS-05 (connection management) by providing the "environmental" context.

In short: IS-09 is the "global settings" service in NMOS — a lightweight API that tells every node "here's how the whole system is configured" so devices align immediately and reliably.
For full details, see the official spec.

NMOS IS-10 (Authorization in IS-04/05)

NMOS IS-10 is the AMWA NMOS Authorization Specification (current version v1.0.1, released December 2024), which defines a standardized mechanism for authorizing clients to access or modify resources in NMOS APIs — primarily IS-04 (Discovery & Registration) and IS-05 (Device Connection Management), but applicable to other NMOS specs like IS-07, IS-08, etc.

It builds on the security foundation laid out in BCP-003-02 ("Authorization in NMOS Systems") and BCP-003-01 (Secure Communications, requiring HTTPS/TLS).

Purpose
Early NMOS APIs (IS-04, IS-05, etc.) were designed as open/unauthenticated in trusted networks. IS-10 adds fine-grained authorization to prevent unauthorized clients from:

Registering fake sources/flows.
Patching connections (routing streams).
Reading/writing sensitive resources (e.g., changing sender/receiver parameters).
This is critical in real-world broadcast facilities to avoid misconfigurations, stream hijacking, or denial-of-service via rogue controllers.

Core Mechanism: OAuth 2.0 with JWTs
IS-10 mandates OAuth 2.0 (RFC 6749 and related specs) for authorization, with these NMOS-specific extensions:

Access tokens must be JSON Web Tokens (JWTs) (RFC 7519), using Bearer authentication.
Tokens are issued by an Authorization Server (separate from NMOS nodes/registries).
Clients present the token in the Authorization: Bearer header when calling protected NMOS APIs.

Key OAuth elements tailored for NMOS:

Preferred grant types: Client Credentials (machine-to-machine, common for automated controllers) and Authorization Code (user-involved scenarios).
Token validation includes standard checks (signature, expiration, issuer, audience) plus NMOS-specific claims in the JWT payload.

NMOS-Specific JWT Claims
Custom claims (prefixed with x-nmos- or similar) define privileges:

x-nmos-api — Specifies which NMOS API(s) the token applies to (e.g., { "name": "is-04", "versions": ["v1.0"] }).
Scopes/roles for read/write access (e.g., read-only for monitoring panels vs. full routing rights for orchestration systems).
Resource-specific restrictions (e.g., only allow patching certain senders/receivers).
Other claims like sub (subject/client ID), iss (issuer), aud (audience, e.g., the NMOS Registry URI), exp, etc.

Roles and Components

Client — NMOS controller, panel, or software wanting to interact with APIs (e.g., patch a connection in IS-05).
Resource Server — NMOS API endpoints (e.g., IS-04 Registry, IS-05 Node API on devices).
Authorization Server — Issues tokens; IS-10 defines its endpoints:

/authorize (for grants).
//token (issue access/refresh tokens).
/revoke (revoke tokens).
JWKS endpoint for public keys (if using asymmetric signing like RS256).

Discovery of the Authorization Server uses IS-09 System Parameters (e.g., via priority-ranked entries in the global config).

Typical Flow for IS-04/IS-05

Client discovers the Authorization Server URI (via IS-09 or config).
Client authenticates to the Auth Server (e.g., client credentials or code flow) → gets JWT access token.
Client includes token in requests to IS-04 Registry or IS-05 Node. Resource Server validates token:

Verifies signature (via JWKS).
Checks claims (e.g., has write scope for IS-05 patching?).
If valid → processes request; else → 401/403.

Tokens are short-lived; refresh tokens or re-authentication used as needed.

Benefits in Broadcast/Media Workflows

Enables role-based access (e.g., operator panels get limited routing rights; admin tools get full control).

For full details, see the official spec: (v1.0.1 docs, APIs, schemas).

DDoS on multicast

DDoS on multicast refers to Distributed Denial of Service attacks that exploit or target multicast mechanisms in IP networks. Multicast (one-to-many or many-to-many delivery) is efficient for broadcasting data like video/audio streams (e.g., in SMPTE ST 2110 media production), but it introduces unique vulnerabilities.

Main Ways DDoS Exploits Multicast

Reflection/Amplification Attacks (Most Common)
Attackers spoof the victim's IP as the source and send small UDP requests to devices/services that use multicast for discovery or responses.

These services reply with larger packets (amplification factor 2–10x or more).

mDNS (Multicast DNS, port 5353) — Used in Bonjour/ZeroConf for device discovery (e.g., printers, Apple devices). Misconfigured/exposed mDNS responders amplify queries.
SSDP (Simple Service Discovery Protocol, UPnP, port 1900) — Devices advertise via multicast; attackers spoof queries → massive reflected responses.
Other UDP-multicast protocols like WS-Discovery, NetBIOS, or certain discovery services.
Result: Victim overwhelmed by high-volume UDP traffic from unwitting "reflectors" (amplifiers).

Direct Multicast Flooding

Attacker floods a multicast group address with junk traffic (e.g., fake RTP/UDP packets).
In unmanaged or poorly configured networks, this can saturate links, consume switch/router resources (IGMP state tracking), or force all receivers in the group to process unwanted data.
In ST 2110 environments (uncompressed media over IP multicast), this could drop frames, desync audio/video, or crash endpoints processing essence streams.

IGMP/PIM Abuse

Spoofed IGMP joins/leaves to multicast groups → exhaust router state tables or trigger unnecessary tree rebuilds (PIM).
Less common but can DoS multicast routing infrastructure in large networks.

Why Multicast is Vulnerable

Multicast uses UDP (connectionless, easy to spoof).
Many discovery protocols are multicast-based and historically exposed (e.g., to the internet or unsegmented networks).
Amplification is easy: small spoofed query → large multicast/group response.
In broadcast/media facilities (ST 2110), multicast is core for efficient stream distribution — attacks here disrupt live production, routing (NMOS), or sync (PTP).

Mitigations

Block external access to multicast discovery ports (5353/mDNS, 1900/SSDP) via firewalls/ACLs.
Disable unnecessary multicast services on edge devices; use unicast where possible.
IGMP snooping + filtering on switches; rate-limit multicast traffic.
Use PIM-SSM (Source-Specific Multicast) instead of ASM to limit sources.
Network segmentation (VLANs, ACLs) and MACsec/802.1X on L2 for controlled environments.
DDoS scrubbing/CDN services for edge protection.
In ST 2110 setups: Follow SMPTE/EBU guidelines for secure multicast (e.g., controlled IGMP, SDN orchestration).

These attacks are volumetric/reflective and relatively easy to launch using botnets, but proper network hygiene drastically reduces risk.

NTP fallback

NTP fallback in the context of DHCP refers to using NTP servers (provided via DHCP) as a backup time synchronization source when the primary timing mechanism — typically PTP (IEEE 1588 Precision Time Protocol) — is unavailable, fails, or cannot achieve synchronization.

Why This Matters in Broadcast/Media Networks (e.g., ST 2110)

PTP is the required high-precision timing protocol for SMPTE ST 2110 (sub-microsecond accuracy for video/audio sync, lip-sync, genlock). NTP (Network Time Protocol) is lower precision (typically milliseconds) but widely supported and reliable for general time-of-day needs. Devices (e.g., encoders, playout servers, NMOS nodes) often support hybrid or fallback modes:
- Primary: Sync to a PTP grandmaster (via multicast Announce/Sync messages). Fallback: If no valid PTP master is detected (e.g., grandmaster offline, network issue, domain mismatch), switch to NTP for basic time sync.
This prevents complete loss of time reference → avoids issues like drifted timestamps, failed stream alignment, or logging errors.

How DHCP Fits In

DHCP servers can push NTP server addresses to clients using Option 42 (NTP Servers).
This is a list of IP addresses (e.g., pool.ntp.org servers or internal NTP stratum-1/2 servers).
Clients that receive these via DHCP can configure them automatically as fallback NTP sources.
In media facilities:

Critical PTP slaves (e.g., ST 2110 endpoints) are often statically configured for PTP domain/profile.
But DHCP Option 42 provides automatic NTP fallback for non-critical or general-purpose devices (monitoring tools, control panels).
Some PTP software (e.g., ptp4l + timemaster in Linux, or tools like Domain Time II) explicitly supports falling back to NTP servers when PTP fails.
Hybrid setups (e.g., Red Hat/Fedora timemaster, or certain grandmasters) use NTP to "keep PTP sources in check" or bridge gaps.

Practical Notes

Not all devices automatically use DHCP-provided NTP as PTP fallback — many require explicit config (e.g., list NTP servers in PTP software settings).
In secure/ST 2110 environments: Prefer internal NTP servers (GPS-disciplined) over public pools.
Combine with DHCP reservations for predictable IPs on timing-sensitive devices.
If PTP is down long-term, NTP fallback ensures devices stay roughly aligned (better than free-running clocks drifting seconds/minutes).

In short: DHCP Option 42 delivers NTP servers so devices can fall back to millisecond-accurate time sync when nanosecond-level PTP isn't working — a common resilience feature in IP media workflows.

NMOS registries

NMOS registries (specifically the IS-04 Registration API and Query API in discovery & registration systems) require authorization when implementing IS-10 (NMOS Authorization) to secure access and prevent unauthorized modifications or misuse.

Why Registries Require It

The IS-04 Registry is a central database holding critical resources: device/node registrations, sources, flows, senders, receivers, etc.
Without authorization:

Rogue clients could register fake or malicious resources (e.g., spoof streams).
Unauthorized controllers could query sensitive info or disrupt the system.
Attackers could flood registrations or perform denial-of-service.

In production broadcast facilities (ST 2110 environments), this could break routing, cause stream hijacking, or enable rogue devices to appear legitimate.

How Authorization Works for Registries (via IS-10)

IS-10 mandates OAuth 2.0 + JWT access tokens for all protected NMOS APIs, including the IS-04 Registry APIs.
Clients (Nodes registering themselves, controllers querying/patching) must:

Obtain a valid JWT from the Authorization Server (often via client credentials grant for automated nodes).
Include the token (Authorization: Bearer <token>) in requests to the Registry.

The Registry validates the token and checks NMOS-specific claims (e.g., x-nmos-api for IS-04 access, scopes for read/write).
Nodes themselves often register with the Authorization Server first (one-time) to get credentials, then use tokens for ongoing IS-04 interactions.
This is paired with BCP-003-01 (requiring HTTPS/TLS) for encrypted communication.

Is It Strictly Mandatory?

In pure IS-04 (without IS-10), registries can operate open/unauthenticated in trusted networks.
But IS-10 + BCP-003-02 make authorization the recommended/standard way for secure, interoperable deployments — especially in multi-vendor or production setups.
Testing tools and real-world implementations (e.g., in EBU TR-1001 or SMPTE environments) often enforce it, and many vendors treat it as required for compliance.

In short: Authorization via IS-10 ensures only trusted, authenticated clients can interact with the NMOS registry, protecting the integrity of discovery and registration in IP media networks. For details, check the AMWA specs .

Why OAuth in NMOS?

Early NMOS implementations relied on open, unauthenticated APIs, which worked well in trusted, closed networks but posed security risks in larger or multi-vendor deployments. To address this, AMWA introduced security best practices and specifications:

BCP-003-02 (Best Current Practice) — Defines client authorization for NMOS APIs.
IS-10 (NMOS Authorization Specification) — Formalizes the mechanism, requiring OAuth 2.0 (as defined in RFC 6749 and related RFCs) with specific extensions for the media industry.

This allows NMOS systems to enforce who (or which client/application) can read, modify, or control resources like sources, senders, receivers, or routing connections—preventing unauthorized changes, accidental misconfigurations, or malicious access.

How OAuth Works in NMOS (High-Level Setup)

OAuth 2.0 is an authorization framework (not authentication itself), enabling a client to obtain limited, time-bound access to protected resources without sharing user credentials directly.

Key roles in an NMOS OAuth setup:

Resource Owner — Typically a user (e.g., broadcast engineer) or system admin who owns/grants access to media resources.
Client — An NMOS controller, panel, orchestration software, or device that wants to interact with NMOS APIs (e.g., to patch a video source to a destination).
Authorization Server — A separate server that authenticates the resource owner/client and issues tokens. (Implementation details like SSO, LDAP, Kerberos, or Active Directory are out of scope for IS-10.)
Resource Server — Any NMOS API server (e.g., Registry, Node, Controller) hosting protected resources that validates incoming tokens.

Typical flow (simplified, often using Client Credentials Grant or Authorization Code Grant for machine-to-machine or user-involved scenarios):

The client authenticates to the Authorization Server (e.g., provides credentials or uses a pre-configured client secret).
The client requests an access token, optionally specifying desired scopes or privileges ("claims").
The Authorization Server validates the request and issues:

An access token (usually a JSON Web Token / JWT per RFC 7523).
Optionally a refresh token for obtaining new access tokens later.

The client includes the access token (in the HTTP Authorization header, e.g., Bearer ) when making requests to NMOS APIs.
The Resource Server (NMOS node/API) validates the token (checks signature, expiration, audience, issuer, and custom claims) and decides whether to allow the action.
If valid, the request proceeds; otherwise, it's rejected (e.g., 401/403 HTTP errors).

Key NMOS-Specific Details

Tokens are JWTs containing custom claims, such as:

Which NMOS APIs the token applies to (e.g., x-nmos-api claim with name like "is-04" and allowed versions).

Encryption/TLS is a prerequisite (see BCP-003-01 using HTTPS).
Discovery of the Authorization Server can use mechanisms like IS-09 (System Parameters).
Supports various grant types, but NMOS prefers those suitable for devices and automated clients (e.g., client credentials for machine-to-machine).
In broadcast setups, this enables role-based access: e.g., a vision mixer panel might get full routing rights, while a remote monitor panel gets read-only access.

Benefits in NMOS Environments

Secures critical operations like stream activation, patching, or parameter changes.
Supports fine-grained control (e.g., limit what a panel can route).
Enables secure multi-vendor interoperability without shared secrets or open APIs.
Aligns with modern IT security practices in media facilities.

For the full technical details, refer to the official AMWA specs:

IS-10 NMOS Authorization
BCP-003-02 on authorization best practices.

This makes NMOS deployments much more robust and production-ready in real-world broadcast facilities.

Open API

OpenAPI (often written as OpenAPI Specification or OAS) is an open, vendor-neutral standard for describing HTTP APIs (most commonly RESTful APIs) in a machine-readable format. It allows both humans and computers to understand the structure, endpoints, parameters, request/response formats, authentication, and other details of an API without needing access to source code, additional docs, or network inspection.

Formerly known as the Swagger Specification, it was donated to the OpenAPI Initiative (under the Linux Foundation) in 2015 and has since become the de facto industry standard for API documentation and design.

Key Features

Written in JSON or YAML (YAML is more human-readable and common).
Describes:

Available endpoints (paths like /users, /devices/{id}).
Supported HTTP methods (GET, POST, PUT, DELETE, etc.).
Parameters (query, path, header, cookie).
Request bodies and responses (including schemas for JSON/XML payloads).
Authentication methods (API keys, OAuth 2.0, Bearer tokens, etc.).
Schemas (data models using JSON Schema-like syntax).
Examples, tags, servers (base URLs), and more.

Version: Current stable is 3.1.x (as of 2025–2026), with 3.0.x still widely used.

Benefits

Interoperability — One OpenAPI file works across languages/tools.
Automation — Tools can auto-generate:
- Interactive documentation (e.g., Swagger UI, Redoc).
- Client SDKs (in Java, Python, Go, etc.).
- Server stubs.
- Tests (Postman collections, contract testing).
- Mock servers.
API-first design — Define the contract before coding → better consistency and collaboration.
Discoverability — Consumers understand capabilities quickly.

OpenAPI vs. Swagger

OpenAPI = The specification/standard itself (the format/rules).
Swagger = A suite of tools (e.g., Swagger Editor, Swagger UI, Swagger Codegen) originally built around it. Many still call OpenAPI docs "Swagger files," but the spec is officially OpenAPI.

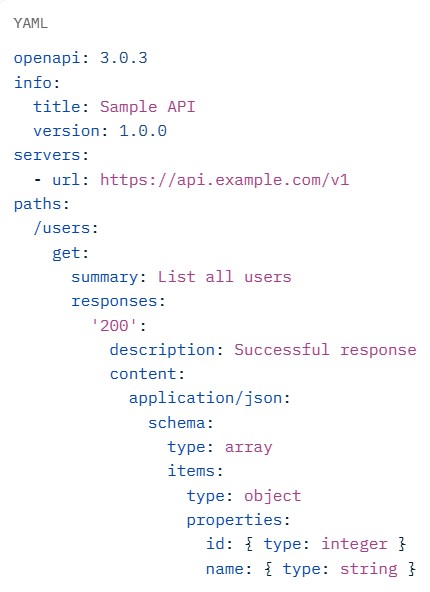

Example Snippet (YAML, minimal OpenAPI 3.0 doc)

In broadcast/media contexts (e.g., NMOS APIs), many modern implementations provide or consume OpenAPI descriptions for their HTTP control-plane interfaces (like IS-04 Query API, IS-05 Connection Management), making integration, testing, and documentation easier across vendors.

The official site is openapis.org, with the full spec at spec.openapis.org. Tools like Swagger Editor (editor.swagger.io) let you write and preview OpenAPI files interactively.

OpenConfig

OpenConfig is an open-source, vendor-neutral initiative led by network operators (with contributions from vendors and the community) to standardize network device management using model-driven approaches. Its goal is to replace legacy protocols like SNMP with modern, programmable interfaces that make multi-vendor networks easier to automate, configure, monitor, and operate.

Core Components

YANG Data Models — OpenConfig defines a consistent set of vendor-neutral YANG models (based on RFC 6020) for configuration and operational state (telemetry). These models cover common features like:

Interfaces (physical, subinterfaces, IP configs)
BGP, OSPF, MPLS
Network instances (VRFs, L2/L3 forwarding)
VLANs, ACLs, QoS
Telemetry paths (counters, interface stats, BGP neighbors, etc.)
Models focus on operational completeness — what operators actually need most — rather than every possible vendor-specific knob.

Declarative Configuration — Instead of imperative CLI commands (e.g., "ip address add..."), you declare the desired state (e.g., "this interface should have IP 10.0.0.1/24"), and the device converges to it.
Management Protocols — OpenConfig promotes modern transports:

NETCONF (RFC 6241) or RESTCONF for configuration push/pull.
gRPC/gNMI (gRPC Network Management Interface) for streaming telemetry (push model: device streams real-time data to collectors) and efficient config.

Why OpenConfig Exists

Multi-vendor pain — Traditional CLI scripting breaks across vendors (Cisco vs. Juniper vs. Arista syntax differs wildly).
Automation-friendly — Standardized models let one script/tool (e.g., Ansible, Python with ncclient/pygnmi) manage devices from different vendors without rewriting code.
Telemetry revolution — Moves from polling (pull SNMP) to streaming push telemetry for real-time monitoring, better for large-scale networks (data centers, telco, broadcast IP backbones).
Started by operators (Google, Facebook, etc.) frustrated with proprietary management.

Relevance to Broadcast/Media IP Networks
In SMPTE ST 2110 / NMOS environments (IP-based video/audio production):

OpenConfig helps automate switch/router config for multicast routing, VLANs, QoS for essence streams, PTP-aware interfaces.
Supports consistent management of white-box or multi-vendor switches in media facilities.
Complements NMOS (control-plane) by standardizing the underlying network device layer (data-plane forwarding, interfaces).

Key Benefits Summary

Vendor independence — Write once, run on Cisco, Juniper, Arista, Nokia, etc. (where supported).

Many modern network OSes (OcNOS, SONiC, Cisco NX-OS, Junos, EOS) natively support OpenConfig models. It's a key enabler for intent-based networking and zero-touch provisioning in modern infrastructures.

OpenTelemetry

OpenTelemetry (often abbreviated as OTel) is an open-source observability framework and toolkit, hosted by the Cloud Native Computing Foundation (CNCF). It provides a standardized, vendor-neutral way to instrument, generate, collect, process, and export telemetry data from applications and services.

Telemetry data includes the three main signals:

Traces — Distributed request flows across microservices (showing latency, dependencies, errors).
Metrics — Quantitative measurements (e.g., CPU usage, request rates, error counts).
Logs — Event records with context.

Key Aspects

What it is:

A set of APIs, SDKs (for languages like Java, Python, Go, .NET, JavaScript, etc.), libraries, agents, and a Collector component.
The OpenTelemetry Protocol (OTLP) — a unified, efficient way to send data (over gRPC or HTTP).
A Collector — a standalone service that receives, processes (filters, transforms, batches), and exports telemetry to backends.

What it is NOT:

A monitoring dashboard, storage backend, or full observability platform (e.g., not Grafana, Prometheus, Jaeger, or Datadog itself).
You send OTel data to those tools (or any compatible backend) via exporters.

History & Origin
It formed from the merger of two earlier projects:

OpenTracing (focused on distributed tracing).
OpenCensus (focused on metrics + tracing).

OpenTelemetry combines the best of both, adds logs support, and aims for a single, portable standard to avoid vendor lock-in.

Why It Matters

Vendor neutrality — Instrument once, send to any backend (Datadog, New Relic, Splunk, Dynatrace, Grafana Tempo + Prometheus + Loki, etc.) without code changes.
Standardization — Solves the "telemetry sprawl" problem in cloud-native, microservices, and Kubernetes environments.
Future-proof — Rapidly becoming the de facto standard for instrumentation in cloud-native software.

In broadcast/media IP workflows (e.g., NMOS/ST 2110 systems), OpenTelemetry can help monitor control-plane APIs, PTP timing accuracy, multicast stream health, or NMOS node performance by collecting traces/metrics/logs from services and infrastructure.

It's one of the most active CNCF projects and widely adopted in production by companies building distributed systems.

Official CNCF site.

PTP Monitoring (gNMI/JSON, Prometheus/Grafana)

gNMI/JSON, Prometheus, and Grafana form a modern, programmable stack for monitoring PTP (Precision Time Protocol, IEEE 1588) in IP-based networks — especially in broadcast/media facilities using SMPTE ST 2110 (where sub-microsecond timing sync is critical for video/audio alignment and frame-accurate switching).

gNMI (gRPC Network Management Interface) + JSON

gNMI is a gRPC-based protocol (from OpenConfig/Google) for streaming telemetry and configuration on network devices (switches, routers, PTP-capable endpoints).
It replaces legacy SNMP polling with push-based or subscription-based streaming (e.g., SAMPLE every 1s or ON_CHANGE for events).
Data is encoded in JSON (per OpenConfig YANG models) or protobuf — but JSON is common for readability and tools.
In PTP context:

Modern switches (Arista, Juniper, Nokia SR Linux) expose PTP metrics via gNMI paths like /system/ptp/... or vendor extensions (e.g., /Arista/eos/...ptp/...).
Metrics streamed: offset from master (nanoseconds), mean path delay, clock state (LOCKED/HOLDOVER/FREERUN), steps removed, grandmaster changes, announce intervals, etc.
This gives sub-second visibility into timing health — vital for detecting drift, BMCA changes, or network asymmetry that could desync ST 2110 streams.

Tools like gnmic (open-source gNMI client) subscribe to these paths, convert to Prometheus format, and expose an HTTP /metrics endpoint.

Prometheus

Open-source time-series database and monitoring system.
Pulls (scrapes) metrics from exporters (e.g., gNMI → Prometheus exporter, or custom PTP exporters parsing ptp4l/phc2sys output).
Stores PTP-related metrics (e.g., st2110_ptp_offset_nanoseconds, st2110_ptp_mean_path_delay_nanoseconds, st2110_ptp_clock_state).
Supports alerting (e.g., "offset > 1000 ns for >5 min → critical sync issue").
In ST 2110 setups: Often combined with custom Go exporters for PTP slave status, RTP jitter/loss, and gNMI switch telemetry (port drops, buffer usage, IGMP state for multicast streams).

Grafana

Web-based visualization dashboard tool that queries Prometheus (via PromQL).
Turns raw PTP metrics into graphs, heatmaps, gauges, and alerts:

Time-series plots of offset/drift over time.
Status panels for clock state or grandmaster changes.
Correlation with network metrics (e.g., high queue drops → PTP jitter spike).

Pre-built or custom dashboards show facility-wide PTP health, helping operators spot issues before they cause frame drops or lip-sync problems.

Typical Stack in Broadcast/ST 2110

Switches/endpoints → gNMI streaming (OpenConfig + vendor paths for PTP).
gnmic or custom collector → converts to Prometheus metrics.
Prometheus scrapes & stores.
Grafana dashboards visualize/alert on PTP + network health.

This approach provides real-time, scalable monitoring far beyond legacy tools (SNMPv3 polling or manual ptp4l checks), with low overhead and vendor neutrality where OpenConfig is supported.

In short: gNMI/JSON streams PTP and network data → Prometheus stores it as time-series → Grafana visualizes/alerts on timing integrity for reliable ST 2110 operation.

Rest APIs

REST APIs (Representational State Transfer Application Programming Interfaces) are a popular architectural style for building web services that allow different software systems to communicate over the internet using standard HTTP protocols.

They are called "RESTful" when they follow the principles defined by Roy Fielding in 2000.

Core Characteristics of REST APIs

Resource-based — Everything is treated as a "resource" (e.g., a user, a device, a video stream) identified by a unique URL (URI).
Example: /users/123, /devices/node-abc, /sources/sdp-456.
HTTP methods define actions (CRUD operations):
- GET — Retrieve a resource (read)
- POST — Create a new resource
- PUT / PATCH — Update an existing resource (PUT replaces fully, PATCH updates partially)
- DELETE — Remove a resource
Stateless — Each request from client to server must contain all the information needed to process it. The server does not store client state between requests (no sessions on the server side).
Uniform interface — Consistent way to interact: use standard HTTP status codes (200 OK, 404 Not Found, 201 Created, 401 Unauthorized, etc.), headers, and resource representations.
Representation — Resources are typically exchanged in formats like JSON (most common today), sometimes XML.
Example response:
JSON{
"id": "node-abc",
"label": "Camera 1",
"enabled": true
}

Layered system — Clients don't need to know if they're talking to the actual server, a proxy, load balancer, or cache.

Typical REST API Example (NMOS/IS-05 style)

Why REST APIs Are Popular

Simple and widely understood (uses HTTP everyone already knows).
Language-agnostic — works with any programming language.
Easy to document (especially with OpenAPI/Swagger specs).
Scalable and cacheable (GET requests can be cached).
Human-readable URLs and responses.

In broadcast/media contexts (like NMOS IS-04, IS-05, etc.), REST APIs are the foundation for control-plane operations: discovery, registration, connection management, and parameter control — all over HTTP with JSON payloads.

In short: REST APIs = web-based interfaces that use standard HTTP methods to create, read, update, and delete resources in a clean, stateless, and predictable way.

Role-Based Access Control

RBAC (Role-Based Access Control) for controllers refers to a security model that grants permissions and access rights to NMOS controllers (or other broadcast/media control systems) based on predefined roles rather than individual user accounts. This aligns with the principle of least privilege — users (or automated clients) get only the access needed for their job function.

General RBAC Concept
RBAC works by:

Defining roles (e.g., "Operator", "Engineer", "Administrator", "Read-Only Monitor").
Assigning permissions to each role (e.g., view resources, patch connections, register devices, modify parameters).
Assigning users/clients to one or more roles.
The system enforces access based on the role(s) — no need to manage permissions per person.

This simplifies administration, reduces errors, and improves security in large teams or multi-vendor environments.

In NMOS Context (Controllers for IS-04/IS-05 etc.)
NMOS controllers (software or panels that query registries, manage connections, route streams) interact with protected APIs via IS-10 Authorization (OAuth 2.0 + JWTs).

While IS-10 itself does not strictly mandate a full RBAC implementation (it focuses on token issuance/validation with custom claims like x-nmos-api and scopes), it enables RBAC-like fine-grained control:

The Authorization Server issues JWTs containing claims that represent roles, scopes, or privileges (e.g., read-only for IS-04 queries, write access for IS-05 patching specific resources).
Resource servers (NMOS nodes, registries) validate the token and enforce access based on those claims — effectively implementing role/privilege-based decisions.
In practice, many broadcast facilities and vendors (e.g., in SMPTE/EBU-aligned systems or tools like EVS Cerebrum integrated with NMOS) apply RBAC on top:

Operator role: Limited routing/patching rights.

Why RBAC Matters for NMOS Controllers

Prevents accidental or malicious changes (e.g., an operator can't accidentally reroute a live feed).
Supports multi-user facilities (newsrooms, OB trucks, studios) with shared NMOS infrastructure.
Complements lower-layer security (TLS, 802.1X, MACsec) for end-to-end protection.
Aligns with broadcast cybersecurity best practices (e.g., EBU recommendations, zero-trust principles).

In summary, RBAC for controllers means access to NMOS APIs and routing decisions is governed by job-based roles, typically realized through IS-10 JWT claims and scopes, making secure, scalable control in IP media workflows much easier to manage.

SDP (Session Description Protocol)

What is SDP (Session Description Protocol)?

It's a text-based format (defined in RFC 8866, updating earlier RFC 4566) for describing the details of multimedia sessions.
SDP doesn't transport media itself—it negotiates and describes parameters so endpoints know how to send/receive streams.
Key elements in an SDP file (one file per flow/stream):

v= — Protocol version
o= — Origin/owner and session ID
s= — Session name
c= — Connection info (IP address, multicast/unicast)
t= — Timing (start/stop)
m= — Media description (e.g., m=video 5004 RTP/AVP 96 →
video on UDP port 5004 using RTP, payload type 96)
a= — Attributes (codecs like H.264/AVC, sampling rates, fmtp for format params, transport details, etc.)

In SMPTE ST 2110 / Professional Media over IP:

SDP is essential for describing each essence/flow (video, audio channels/groups, ancillary data/metadata).
One SDP per flow (or per redundant pair in SMPTE 2022-7 setups).
Control systems (e.g., NMOS controllers via IS-05) fetch SDP from senders and push it to receivers to configure connections properly.
It includes IP multicast/unicast addresses, ports, RTP details, payload types, and format specifics (e.g., 1080p59.94, color space, audio channel mapping).

Example snippet of a simple ST 2110 video SDP:
text
v=0
o=- 1234567890 2 IN IP4 192.168.1.100
s=Video Flow
c=IN IP4 239.1.2.3/32
t=0 0
m=video 5004 RTP/AVP 96
a=rtpmap:96 raw/90000
a=fmtp:96 sampling=YCbCr-4:2:2; width=1920; height=1080; exactframerate=60000/1001; ...

SNMPv3

SNMPv3 (Simple Network Management Protocol version 3) is the current and most secure version of SNMP, a standard protocol used to monitor, manage, and configure network devices (routers, switches, servers, encoders, playout systems, etc.) from a central management station.

It was introduced in 1998 (RFC 3410–3418) to fix the major security flaws in earlier versions:

SNMPv1 and SNMPv2c — use community strings (essentially plaintext passwords like "public" or "private") → vulnerable to eavesdropping, replay attacks, and unauthorized access.

Key Security Features of SNMPv3
SNMPv3 introduces a full security model with three main aspects:

Authentication

Ensures the sender is legitimate. Supported mechanisms:

HMAC-MD5-96 or HMAC-SHA-96 (older, still common)
HMAC-SHA-2 family (SHA-224, SHA-256, SHA-384, SHA-512) — modern and recommended

Uses a username + authentication password (or key).

Privacy (Encryption)

Encrypts the payload so data (including community-like strings or sensitive OIDs) can't be read in transit.
Supported ciphers:

DES (legacy, weak — avoid)
AES-128 (CBC mode, standard and widely used)
AES-192 / AES-256 (stronger options in newer implementations)

Access Control

View-based Access Control Model (VACM) — defines what parts of the MIB (Management Information Base) a user can read/write/notify.
You can restrict users to read-only access for certain OIDs (e.g., interface stats) while allowing write for others (e.g., configuration changes).

Security Levels in SNMPv3 (noAuthNoPriv, authNoPriv, authPriv)

Level	Authentication	Privacy (Encryption)	Typical Use Case
noAuthNoPriv	No	No	Testing or trusted internal networks (insecure)
authNoPriv	Yes	No	Integrity and authentication required, but encryption not necessary
authPriv	Yes	Yes	Full security (recommended for production)

Most real-world deployments use authPriv (authenticated + encrypted)

How It Works (Simplified)

Manager (NMS like SolarWinds, Zabbix, PRTG, or Nagios) sends a request to an agent on the device.
Agent authenticates the request (checks username + auth key).
If privacy is enabled → decrypts the message.
Checks VACM access rights for the requested OID(s).
Responds (encrypted if authPriv) with data or confirmation.

Relevance in Broadcast/Media IP Networks

Monitor health of ST 2110 switches, encoders, PTP grandmasters, NMOS nodes (interface errors, CPU, multicast group stats, PTP offset via vendor MIBs).
Configure devices remotely (e.g., set QoS policies, enable/disable ports).
SNMPv3 is preferred over v1/v2c in secure facilities to prevent credential sniffing or unauthorized config changes.

Quick Summary
SNMPv3 = SNMP with proper security — authentication, optional encryption, and fine-grained access control.

It's the only version you should use in any production or exposed network today.

SSH (Secure Shell)

SSH (Secure Shell) is a cryptographic network protocol that provides secure remote access to a computer or device over an unsecured network, replacing insecure protocols like Telnet or rlogin.
It enables encrypted communication for:

Remote command-line login (shell access)
Remote command execution
Secure file transfer (via SCP or SFTP)
Port forwarding/tunneling

Key Features

Encryption — All data (including passwords, commands, and file contents) is encrypted end-to-end using strong ciphers (e.g., AES-256).

Password (less secure, still common)
Public-key cryptography (recommended: RSA, Ed25519 keys — client proves possession of private key)
Certificates, Kerberos/GSSAPI, or multi-factor in enterprise setups

Integrity & replay protection — Ensures data isn't tampered with or replayed.
Versions — SSH-1 (obsolete, insecure), SSH-2 (current standard, much more secure).

How SSH Works (Simplified)

Client connects to server (default TCP port 22).
Server sends its public host key → client verifies it (first time: prompts to accept fingerprint).
Key exchange (e.g., Diffie-Hellman) establishes a shared session key.
Encrypted channel is set up.
Client authenticates (password or public-key challenge).
Session established — user gets a secure shell or can transfer files/tunnel traffic.

Common Uses in Broadcast/Media Contexts

Securely manage Linux-based encoders, playout servers, NMOS nodes, or PTP grandmasters remotely.
Transfer configuration files, logs, or media assets securely (SCP/SFTP).
Create encrypted tunnels for accessing internal services over the internet (e.g., SSH tunnel to reach a protected NMOS registry).
Automate tasks via scripts/keys in CI/CD or orchestration tools.

Quick Security Best Practices

Disable password auth → use key-based only.
Change default port (if exposed).
Use strong keys (Ed25519 preferred).
Enable fail2ban or similar to block brute-force attempts.
Keep software updated (OpenSSH vulnerabilities are rare but serious when they occur).

In short: SSH is the de facto standard for secure remote administration and file transfer in modern IT and broadcast IP infrastructures.

Syslog

Syslog is a standard protocol (defined in RFC 5424 for the modern version, with RFC 3164 for the legacy format) used for logging messages from devices, applications, and operating systems across a network. It allows centralized collection, storage, and analysis of log events — making it essential for monitoring, troubleshooting, auditing, and security in IT and broadcast environments.

Core Idea

Devices (servers, switches, routers, encoders, NMOS nodes, firewalls, etc.) generate log messages.
These messages are sent to a syslog server (or collector) for centralized storage and processing.
This replaces scattered local logs (e.g., /var/log on Linux) with a single, searchable repository.

Key Components

Message format (modern RFC 5424):
- Timestamp
- Hostname / IP
- Facility (category: e.g., auth, cron, kernel, mail, user)
- Severity (0–7: emergency, alert, critical, error, warning, notice, info, debug)
- Structured data (optional key-value pairs)
- Message content
Example syslog message (RFC 5424 style):
text<34>1 2026-02-18T19:29:45Z encoder1.example.com app - - - [timeQuality tzKnown="1"] SSH login failed for user admin from 192.168.1.50
(Priority 34 = facility 4 [auth] + severity 2 [critical])

Transport:
- Traditionally UDP port 514 (fast, unreliable — messages can be lost).
- Modern/recommended: TCP port 514 or TLS-encrypted TCP port 6514 (reliable, secure).
- Some implementations use RELP (Reliable Event Logging Protocol) over TCP.
Facilities (0–23) — categorize the source (e.g., 0 = kernel, 1 = user-level, 4 = auth/security, 10 = NTP, 16–23 = local use).
Severities (0 = Emergency → system unusable, down to 7 = Debug).

Common Use Cases in Broadcast/Media IP Networks

Central logging of:

NMOS node registration failures or API errors.
PTP grandmaster changes or sync offsets (critical for ST 2110 timing).
Switch/router events (port flaps, IGMP joins/leaves for multicast).
Encoder/playout server alarms, stream drops, or bitrate issues.
Security events (failed SSH logins, 802.1X auth failures).

Integration with SIEM tools (Splunk, ELK Stack/Elastic, Graylog, QRadar) for alerting, correlation, and compliance.

Popular Syslog Implementations

rsyslog (Linux default on most modern distros — very feature-rich).
syslog-ng (powerful filtering, parsing, and reliability features).
nxlog (cross-platform, good for Windows + Linux).
Cloud collectors: AWS CloudWatch Logs, Google Cloud Logging, Azure Monitor.

Security Best Practices

Always use TLS (syslog over TLS) for sensitive logs — plaintext UDP/TCP exposes credentials, IPs, and details.

In short: Syslog is the universal "logging glue" of networks — devices send structured log messages to a central server so you can monitor, debug, and secure everything from one place. In media facilities, it's invaluable for tracing timing issues, stream failures, or security incidents across distributed IP infrastructure.

TLS/mTLS for APIs

TLS (Transport Layer Security) and mTLS (Mutual TLS) are cryptographic protocols that secure communication over networks, especially for APIs. They ensure data is encrypted in transit, prevent eavesdropping, tampering, and (in varying degrees) impersonation attacks.

What is TLS?
TLS is the successor to SSL and the standard for secure communication today (e.g., HTTPS). It provides:

Encryption — Data is scrambled so only the intended parties can read it.
Integrity — Messages can't be altered undetected (via MACs or AEAD).
Server authentication — The client verifies the server's identity using an X.509 certificate.

In a typical API call:

Client connects to https://api.example.com.
Server presents its certificate (signed by a trusted CA like Let's Encrypt, DigiCert).
Client checks the certificate (valid, not expired, matches domain, trusted chain).
They negotiate keys and establish an encrypted channel.
Only the server is proven authentic; the client is usually anonymous or authenticated later (e.g., via JWT in Authorization header, API key, OAuth token).

Use cases for standard TLS:

Public APIs (e.g., weather, payment gateways).

This is the default for almost all APIs today.

What is mTLS (Mutual TLS)?
mTLS extends TLS by requiring mutual authentication: both the client and the server present and verify X.509 certificates during the TLS handshake. This happens before any application data (like HTTP requests) is sent.
Key differences:

In TLS: Only server certificate is presented and verified.
In mTLS: Server verifies the client's certificate (and vice versa), creating two-way trust at the transport layer.

How the mTLS handshake works (simplified):

Client initiates connection.
Server sends its certificate → client verifies it (standard TLS step).
Server requests client certificate ("Client Certificate Request").
Client sends its own certificate (and proves possession of private key).
Server verifies client's certificate against a trusted CA or trust store.
Both sides confirm the other is trusted → encrypted channel established.
Only then does the HTTP request proceed (e.g., GET /protected-resource).

If either certificate is invalid, missing, revoked, or untrusted → connection fails immediately (no chance for app-layer auth).

Why Use mTLS for APIs?

Strong client identity — No shared secrets, API keys, or tokens that can leak; identity is tied to a cryptographic key pair.
Zero-trust friendly — Verifies "who" is calling the API at the network edge, before any code runs.
Prevents unauthorized access — Even if someone has a valid JWT or API key, without the right certificate → no connection.
API-to-API / machine-to-machine — Ideal for microservices, service meshes (e.g., Istio, Linkerd), B2B integrations, internal backends.
Defense in depth — Works alongside JWT/OAuth for layered security.
Regulatory/compliance — Common in finance (e.g., Mastercard APIs), healthcare, government, broadcast/media facilities with sensitive IP streams.

In broadcast/media contexts (like NMOS/ST 2110 environments), mTLS can secure control-plane APIs between nodes, controllers, and registries, ensuring only trusted devices participate.

TLS vs mTLS: Quick Comparison

Aspect	TLS (One-way)	mTLS (Mutual / Two-way)
Authentication	Server only	Both server and client
Certificate Required	Server: yes; Client: no	Both server and client
Client Identity	Application layer (JWT, API key, etc.)	Transport layer (certificate)
Security Level	Good for public-facing services	Excellent for internal / zero-trust APIs
Management Overhead	Low (server certificate only)	Higher (issue, manage, rotate client certificates)
Revocation Checking	Server certificate CRL / OCSP	Both sides (more complex)
Typical Use	Websites, public APIs	Microservices, B2B, secure IoT, enterprise APIs
Performance Impact	Minimal	Slightly higher (additional handshake steps)

Practical Notes (2026 Context)

Certificate management is the biggest challenge for mTLS: You need a PKI (private CA or managed service like AWS ACM PCA, HashiCorp Vault, Smallstep).
Public CAs are phasing out client auth support in dual-EKU certs (Chrome policy ~2026), so internal/private CAs are standard for mTLS.
Many platforms support it natively: AWS API Gateway/CloudFront, Azure, Google Cloud, NGINX, Envoy, Istio.
Often combined with JWT: mTLS authenticates the client machine → JWT authorizes the user/action.

In short:

Use TLS for most public/consumer APIs.
Use mTLS when you need ironclad proof of client identity, especially in trusted or high-security environments like media production networks or zero-trust setups.

Configuring base IP/VLANs

VLANs segment a network at Layer 2 (broadcast domains), while IP addresses operate at Layer 3. To make VLANs useful with IP traffic:

Devices in the same VLAN can communicate directly (same broadcast domain).
Devices in different VLANs need Layer 3 routing (via a router or Layer 3 switch).
Each VLAN is typically paired with its own IP subnet (e.g., VLAN 10 → 192.168.10.0/24).

1. Basic VLAN + IP on a Layer 2 Switch (management IP only)
Layer 2 switches don't route between VLANs, but you assign an IP for management (e.g., SSH/Web access).
Typical steps (Cisco IOS example):
- Create VLAN(s): vlan 10 → name Office
- Assign switch ports to VLANs:
  - Access port: interface GigabitEthernet1/0/5 → switchport mode access → switchport access vlan 10
- Assign IP to the switch (usually on VLAN 1 for management):
  interface vlan 1ip address 192.168.1.10 255.255.255.0no shutdown
- Set default gateway: ip default-gateway 192.168.1.1
This gives the switch itself an IP; connected devices still need their own IPs (static or via DHCP).

YANG/JSON

YANG and JSON are related but serve different purposes in modern network management, especially for programmable networks (e.g., automation in broadcast/media IP infrastructures like ST 2110 switches/routers).

YANG (Yet Another Next Generation) is a data modeling language defined in RFC 7950 (YANG 1.1). It describes the structure, types, constraints, and hierarchy of configuration and operational (state) data for network devices.

Think of YANG as a schema or blueprint — it defines what data looks like (e.g., an interface has a name, IP address, MTU; a BGP neighbor has an IP and AS number) and rules (e.g., MTU must be 1500–9216, IP must be valid IPv4/IPv6).
It organizes data in a tree-like structure (containers group related items, lists allow multiples, leaves hold values).
YANG is human-readable (C-like syntax) and machine-processable.
It's protocol-agnostic — used with NETCONF (XML-based), RESTCONF (HTTP/REST-like), gNMI (gRPC-based), etc.
Widely adopted for vendor-neutral modeling (OpenConfig) and vendor-specific models (Cisco, Juniper, Arista).

Example snippet of a simple YANG module:

This defines the allowed structure for interface config/state.

What is JSON in this context?
JSON (JavaScript Object Notation) is a lightweight data interchange format (RFC 8259) — it's how actual data (instances) is encoded and sent/received over the wire.

YANG models define the rules → tools/libraries generate or validate JSON payloads that conform to those rules.
JSON is used for:

RESTCONF payloads (preferred over XML in many modern APIs).
gNMI telemetry streaming.
OpenAPI docs (when describing YANG-modeled APIs).

RFC 7951 specifically defines how to encode YANG-modeled data as JSON (e.g., hierarchical trees become nested objects, lists become arrays, leaf values map directly).

Example JSON instance conforming to the YANG above:

YANG vs. JSON: Key Differences

Aspect	YANG	JSON
Purpose	Data modeling (schema / blueprint)	Data serialization (actual payload format)
What It Is	Language to define structure and constraints	Lightweight text format for data exchange
Sent Over Network?	No (models are loaded once)	Yes (configuration payloads, telemetry data)
Human-Readable?	Yes (more verbose than JSON)	Very (simple key-value / object structure)
Used With	NETCONF, RESTCONF, gNMI, OpenConfig	RESTCONF (preferred), gNMI, APIs
Example Role	"This interface must have a valid IP"	{ "address": "10.0.0.1" }

How They Work Together

Define models in YANG → compile/validate tools generate code or docs. To configure/query: Create JSON (or XML) data that matches the YANG structure → send via RESTCONF (HTTP POST/PUT/GET) or NETCONF. Device validates incoming JSON against its loaded YANG models → applies config or returns state in JSON. In broadcast/media setups: OpenConfig YANG models help standardize switch configs for multicast, QoS, PTP interfaces → JSON payloads make automation scripts (Python, Ansible) vendor-agnostic.

In short:
YANG = the contract/schema for network data.
JSON = the envelope that carries the actual data based on that contract.

This combo powers much of modern network programmability — far more reliable than parsing CLI output.

UPDATED

3/18/26

V260318-1.0

Design Questions & Answers

802.1X

Access Control List

Ansible/NETCONF

BMCA spoofing

Secure CLI

DHCP

DHCP options for PTP domain

Docker container

DoS attacks

DSCP CS5/AF41 for media

DSCP CS6 for PTP

Dynamic IP

EBU R 143

IS (Interface Specifications) Standards

How JWTs Are Used in APIs

LLDP (Link Layer Discovery Protocol)LLDP (Link Layer Discovery Protocol)

LTS firmware

MACsec for L2 links

Man in the middle attacks

MQTT

NMOS IS-09 (System Parameters for config)

NMOS IS-10 (Authorization in IS-04/05)

DDoS on multicast

NTP fallback

NMOS registries

Why OAuth in NMOS?

Open API

OpenConfig

OpenTelemetry

PTP Monitoring (gNMI/JSON, Prometheus/Grafana)

Rest APIs

Role-Based Access Control

SDP (Session Description Protocol)

SNMPv3

SSH (Secure Shell)

Syslog

TLS/mTLS for APIs

Configuring base IP/VLANs

YANG/JSON
