Firewalls

Where firewall preside one that often confuses people because firewalls aren’t confined to just one OSI layer. They span several layers depending on their sophistication and function. There are no pure Session- or Presentation-layer firewalls; modern firewalls enforce Layer-5/6 concepts only as part of Layer-7 application-aware security systems.

We will introduce them now, as starting tomorrow we will start to transition into layers that are more 2110 specific.

The hardware part is usually a router, but it can be a computer or dedicated piece of hardware (a black box) with 2 NIC cards in it. Modern firewalls are rarely “just a router with two NICs.” Most enterprise and mid-market firewalls today are purpose-built appliances (Palo Alto, Fortinet, Check Point, Cisco Firepower/ASA, etc.) with specialized ASICs/NPUs, multiple high-speed ports, and often integrated switching/routing. The “two-NIC Linux box running iptables” model is now mostly a hobbyist / very small office thing.

  Firewalls maintain Access Control Lists ( ACL ). These filter traffic based on source and destination IP addresses, protocols in use, source and destination port numbers, and packet type.

Firewall States

  Stateful Firewall keeps track of connections/sessions via TCP’s 3-way handshake. These firewalls tend to be a bit slower at establishing connections, but after a connection is established, they are usually faster because they just have to check the session state table for the connection instead of comparing the packet against all the relevant ACLs. While this was true in the late 1990s–early 2000s. Today’s stateful firewalls (especially NGFWs A Next-Generation Firewall goes beyond traditional port- and IP-based filtering by understanding applications and users, not just packets. It operates primarily at OSI Layers 3–7, inspecting traffic deeply to make security decisions.

How NGFW Differs from a Traditional Firewall

Traditional Firewall	NGFW
Filters by IP, port, protocol	Filters by application, user, and content
Layer 3/4 focus	Layer 3–7 inspection
Limited payload visibility	Deep Packet Inspection (DPI)
Basic ACL rules	Application-aware policies
Separate IDS/IPS devices	Integrated IDS/IPS

Core NGFW capabilities
• Stateful inspection (tracks session state)
• Deep Packet Inspection (DPI)
• Application identification (e.g., “Zoom,” “YouTube,” “SFTP” even if on port 443)
• Integrated IDS/IPS (intrusion detection/prevention)
• TLS/SSL inspection (optional, with certificates)
• User- and group-based policies
• Advanced threat protection (malware, command-and-control detection)
with hardware acceleration) establish connections as fast as or faster than stateless ones because the session lookup is done in hardware tables ( CAM/TCAM ) or very efficient hash tables. The “slower establishment” stereotype is largely obsolete on current hardware.

Stateless Firewall only looks at individual packets and applies them to an ACL. It doesn't care about the context the packets are in. It’s simpler and requires less memory. These are best used on an internal network where there are fewer security threats.

  Many firewalls will use Dynamic Packet Switching Dynamic Packet Switching is not a widely standardized or commonly used term in modern networking literature. It appears occasionally in older academic papers, patents, or specific contexts (e.g., early satellite broadcast systems or experimental designs from the 1970s–1990s) to describe packet switching with dynamic elements, such as:
  • Adaptive or on-demand resource allocation (e.g., dynamic bandwidth sharing or routing decisions based on real-time conditions).
  •Variable packet paths and statistical multiplexing in networks without fixed circuits.
In essence, it refers to the core principle of packet switching itself — breaking data into packets that are routed dynamically (independently, often taking different paths) across the network, as opposed to circuit switching (fixed dedicated path).

Today, this is simply called packet switching (the foundation of the Internet, Ethernet, IP networks, etc.), with "dynamic" emphasizing features like dynamic routing, dynamic bandwidth allocation, or connectionless/datagram operation.

If the term was used in a specific context (e.g., firewall stateful inspection or a particular vendor/tool), it might have been a non-standard or outdated way to describe stateful packet inspection or dynamic filtering — but no mainstream firewall documentation uses "Dynamic Packet Switching" for that purpose. The standard term there is stateful inspection or stateful firewalling. , which ensures that packets they forward match sessions initiated on their private side by something called a dynamic state list or state table, which keeps track of all communication sessions between stations from inside and outside the firewall.

Attachments — all .exe files are blocked; content encoding; email headers; language phrases; proximity of words to each other; URLs, and finally Bayesian — or the probability that some combination of the above might spell trouble.

How Application firewalls work

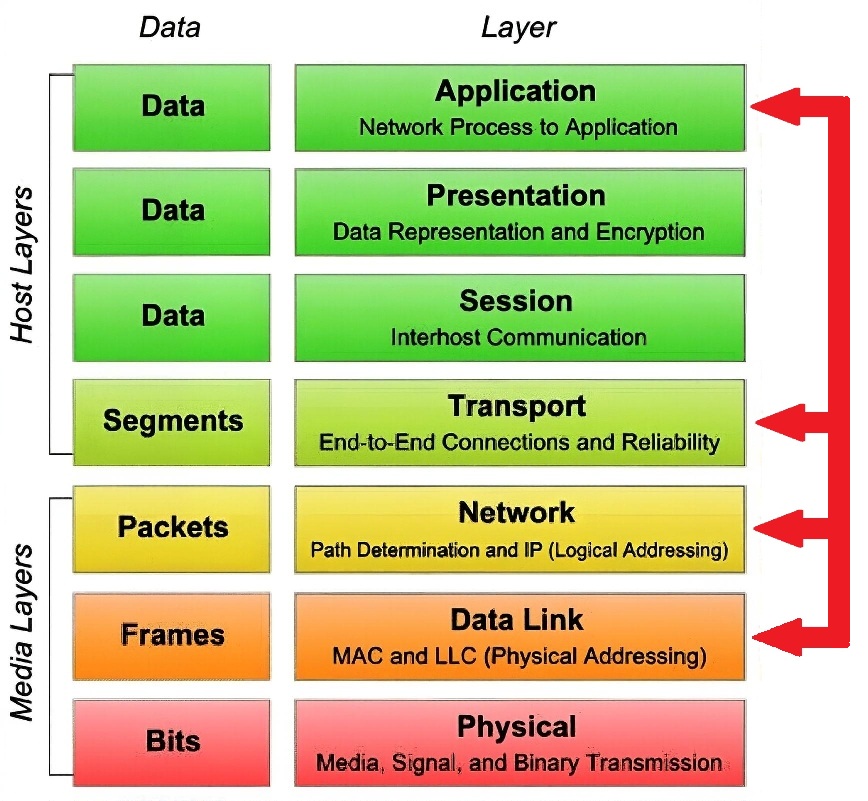

Firewall Involvement at the various layers

Here’s how to think about it:

OSI Layer	Name	Firewall Involvement	Explanation / Examples
Layer 1	Physical (Bits)	❌ None	Cables, optics, electrical signals—no firewall function here.
Layer 2	Data Link (Frames)	⚙️ MAC filtering / switch ACLs	Block by MAC; e.g., Port Security, wireless MAC filters.
Layer 3	Network (IP)	✅ Packet filters	Allow/deny by src/dst IP, protocol (TCP/UDP/ICMP), TTL. (Cisco ACL, iptables)
Layer 4	Transport (TCP/UDP)	✅ Stateful firewalls	Track connection state (handshakes, flows). Example: ASA, pfSense, Palo Alto.
Layer 5	Session	⚙️ Session-aware	Understands SIP/H.323; opens pinholes for related RTP streams.
Layer 6	Presentation	⚙️ TLS/SSL inspection	Decrypt/inspect encrypted traffic (policy-dependent).
Layer 7	Application	✅ NGFW / DPI	Deep Packet Inspection of HTTP, DNS, RTSP, RTP, etc.; content policies, IPS.

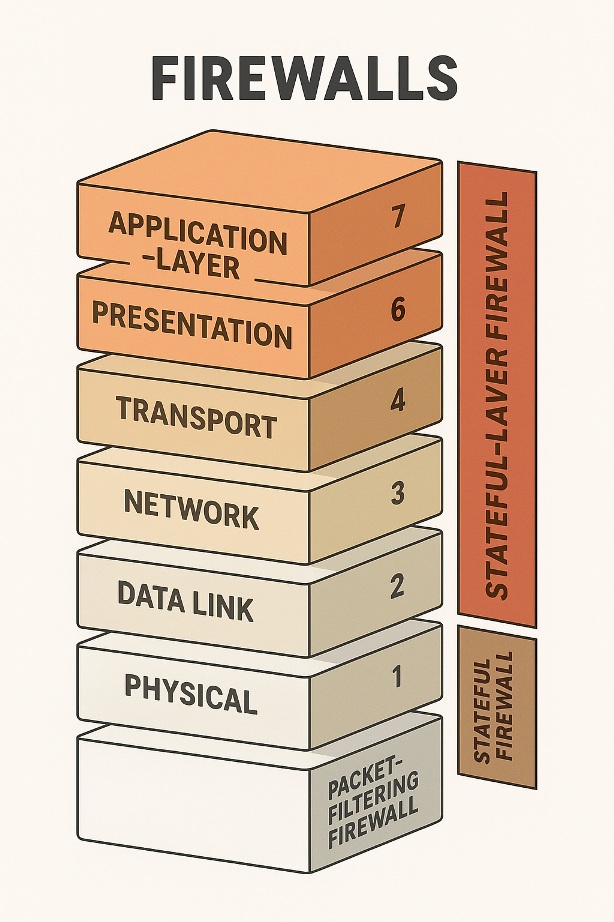

Type	OSI Layers	Example Functions
Packet-Filtering Firewall	L3	Permit/deny by IP, protocol, and port; stateless.
Stateful Inspection Firewall	L3–L4	Tracks session/state (TCP handshakes, UDP flows); dynamic rules.
Application-Layer (Proxy) Firewall	L7	Understands application protocols; URL filtering, protocol validation.
Next-Generation Firewall (NGFW)	L3–L7	Combines stateful + DPI + IDS/IPS, AV, TLS inspection, user-aware policies.

DMZs

A host based firewall is installed on a host and only protects that machine; this software based firewall isn't usually as robust as a dedicated firewall.

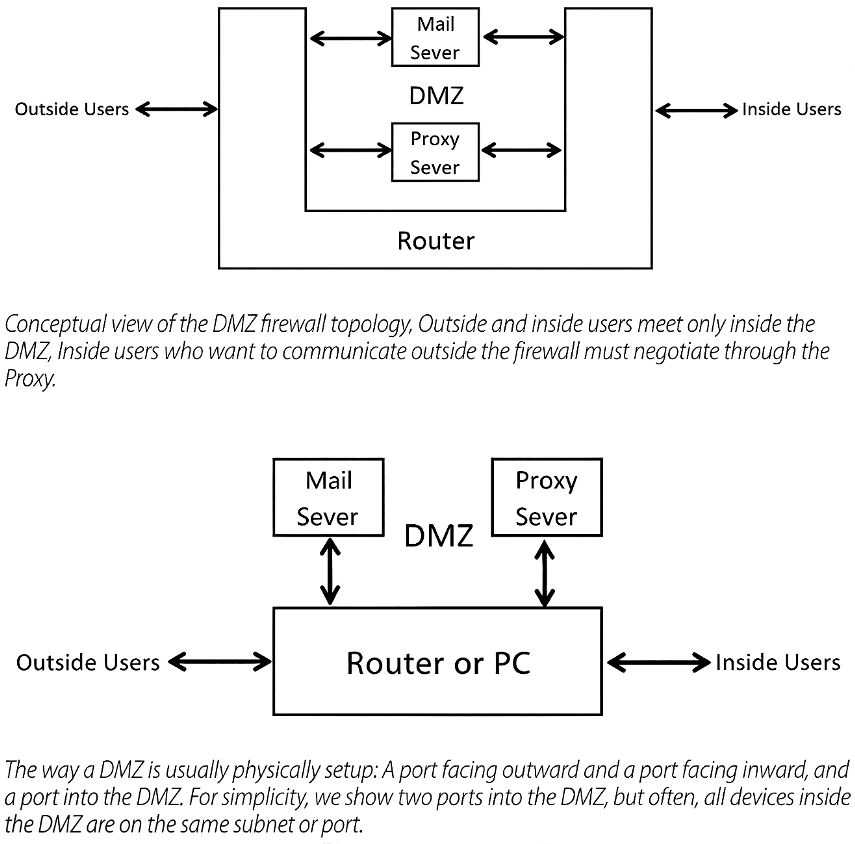

When a network has resources that must be accessed from the outside, a DMZ zone is usually setup. This is done either with a single computer or router or with two machines. The purpose is to allow outside users, along with inside users, access to resources such as email, ftp, web, DNS servers, and often a proxy server, but still keep outside users out of the internal network.

In the single firewall approach, there are three NIC cards, one outward facing, one inward facing, and one port to the resources between the inside and outside networks. Traffic from the outside is only allowed to the resources in the DMZ. Traffic from the inside is also routed only to DMZ resources. Any web traffic generated from inside must go through the proxy server in the DMZ. Any traffic with malicious intent must get through these DMZ servers. If designed and maintained correctly, that should not happen. The bad guys may cause havoc in the DMZ but shouldn’t be able to get to the inside.

JSON Files

Many modern systems—including switches, routers, and firewalls—use JSON files for configuration, automation, and data exchange. JSON (JavaScript Object Notation) is a lightweight, plain-text format for structured data. It consists of just a few basic building blocks:

• Objects: Key-value pairs enclosed in curly braces
  Example: { "key": "value", "number": 123 }
• Arrays: Ordered lists enclosed in square brackets
  Example: [1, 2, 3] or [{"a": 1}, {"a": 2}]
• Primitive values: strings, numbers, booleans (true/false), and null

JSON is human-readable, easy for programs to parse, and supported by virtually every programming language and networking tool.

How Firewalls Use JSON

• Configuration Export/Import (Backups & Migration)
  Save firewall zones, address objects, NAT rules, security policies, etc., to a JSON file. You can later import that file on the same device or transfer it to another firewall.
• Automation & REST APIs
  Most modern firewalls and next-generation firewalls (NGFWs) expose REST APIs that use JSON for both requests and responses. You can write scripts to:
• Create or update rules
• Add/modify address or service objects
• Retrieve logs, statistics, or counters
• Infrastructure-as-Code (IaC)
  Store firewall configurations as JSON files in Git. Review changes via pull requests and deploy them consistently across multiple sites or environments.
• Templating
  Use a single JSON template with placeholders (variables) to generate device-specific configurations (e.g., different subnets or public IP addresses for each location).
• Compliance & Auditing
  JSON configuration snapshots provide a clear, machine-readable record for audits, compliance checks, and detecting configuration drift over time.

Why JSON Is Especially Handy for Firewalls

• Portable — Easily move configurations between test labs, production environments, or even different vendors (with appropriate translation tools).
• Versionable — Track changes over time using Git diffs.
• Automatable — Integrate with CI/CD pipelines to validate and apply configs automatically.
• Scriptable — Make small changes (e.g., add a rule or change a port) with a text editor or simple script—no need to navigate complex GUIs.

Gotchas & Best Practices

• Rule Ordering Matters
  Most firewalls evaluate rules from top to bottom. Always maintain the correct sequence in your JSON arrays.
• Validate Before Pushing
  Check for invalid CIDR ranges, ports, or syntax using JSON Schema validators or linters to avoid pushing broken configurations.
• No Native Comments
  JSON does not support comments. Store explanatory notes in a "description" field or in separate documentation files.
• Never Hardcode Secrets
  Do not embed credentials, certificates, or keys directly in JSON. Reference external secure vaults or inject them at deployment time.
• Watch for Schema Drift
  Different vendors (and even different versions of the same vendor) use slightly different property names and structures. Maintain vendor-specific schemas or mappings to avoid compatibility issues.

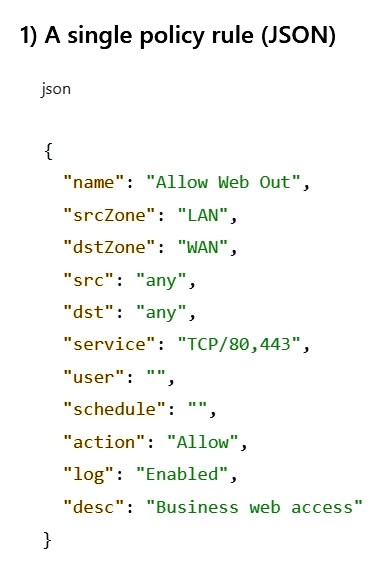

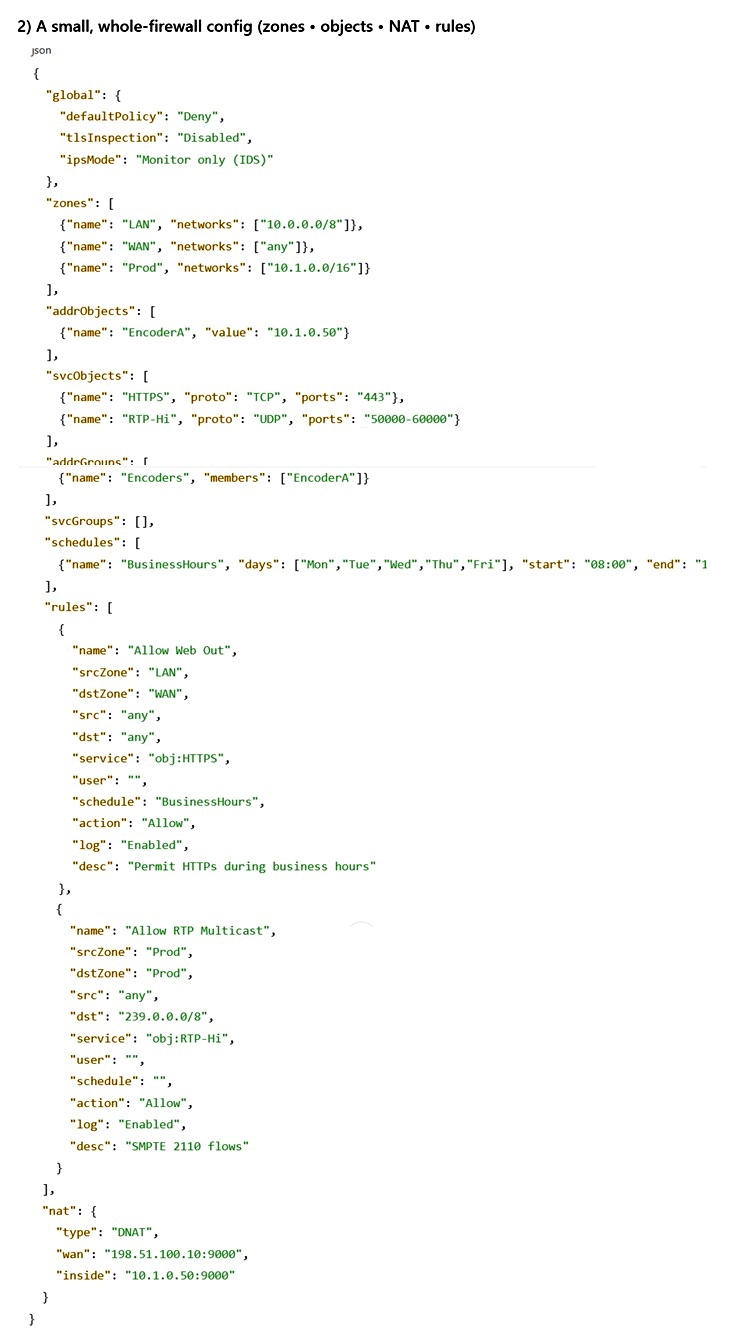

A couple examples
